l Human Body Safety: Harmless to pacemaker wearers, pregnant women and magnetic media.

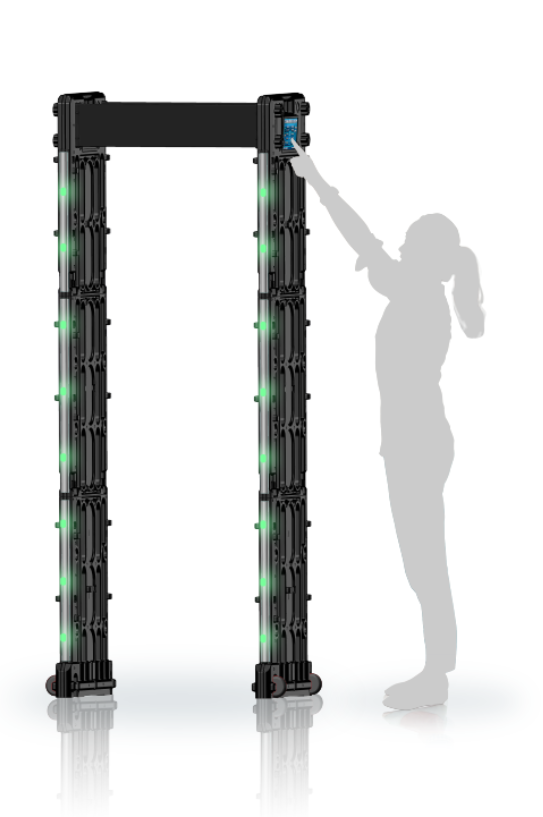

l Display Function: Equipped with a 7‑inch high‑definition LCD touch screen for premium convenience and intelligence.

l Shell Protection Technology: Excellent IP54 protection performance (rain canopy is optional).

l Mobile Internet Technology: Remote control via mobile APP, enabling zero‑distance operation worldwide (optional).

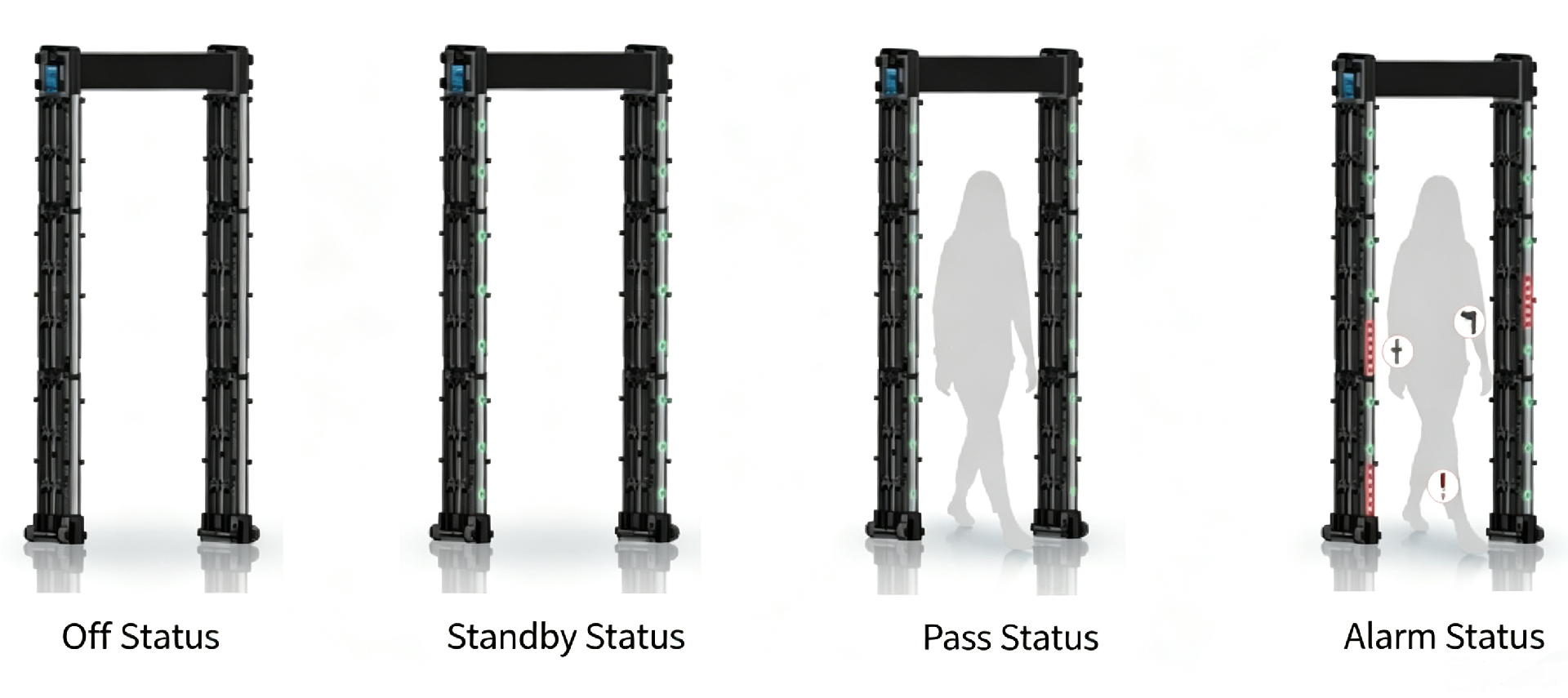

l Multi‑zone Technology: 24 detection zones support manual switching and intelligent zoning (further zone upgrade available). Sensitivity of each detection zone can be adjusted freely (max. sensitivity range: 0‑255 levels). High‑brightness LEDs indicate alarm positions to precisely locate hidden contraband.

l Multi‑zone Detection Function: Detection zones can be adjusted and divided manually (customizable zone quantity). Sensitivity for each zone is freely configurable.

l Power‑on Adaptive Diagnosis: The system automatically diagnoses hardware status upon startup.

l Adaptive Debugging System: When entering debugging mode, the system adaptively calibrates detection criteria and adapts to varying working environments.

l Start‑Stop Technology: Infrared sensor with automatic start‑stop function extends service life by 100 times.

l Query Function: Real‑time information query is supported.

l Adaptive Debugging System: When entering debugging mode, the system adaptively calibrates detection criteria and adapts to varying working environments.

Model

WD-BJ300

Detection Zones

24 independent detection zones

Overall Sensitivity

0-255 levels

Passing Speed

0.4m/s - 1.2m/s

Power Consumption

＜15W

Frequency Channels

1-100 channels

Compliance Standard

GB15210-2018

Gross Weight

Approx. 50kg

Operating Ambient Temperature

-20℃ ~ +60℃

Operating Voltage

AC110V/240V, 50/60Hz

Inner Channel Dimension

2050(H) × 670(W)mm (customizable width range: 670~1500mm)

Overall External Dimension

2247(H) × 920(W) × 600(D)mm

Folded Dimension

889(H) × 606(W) × 484(D)mm

Packaging Dimension

948(H) × 666(W) × 525(D)mm

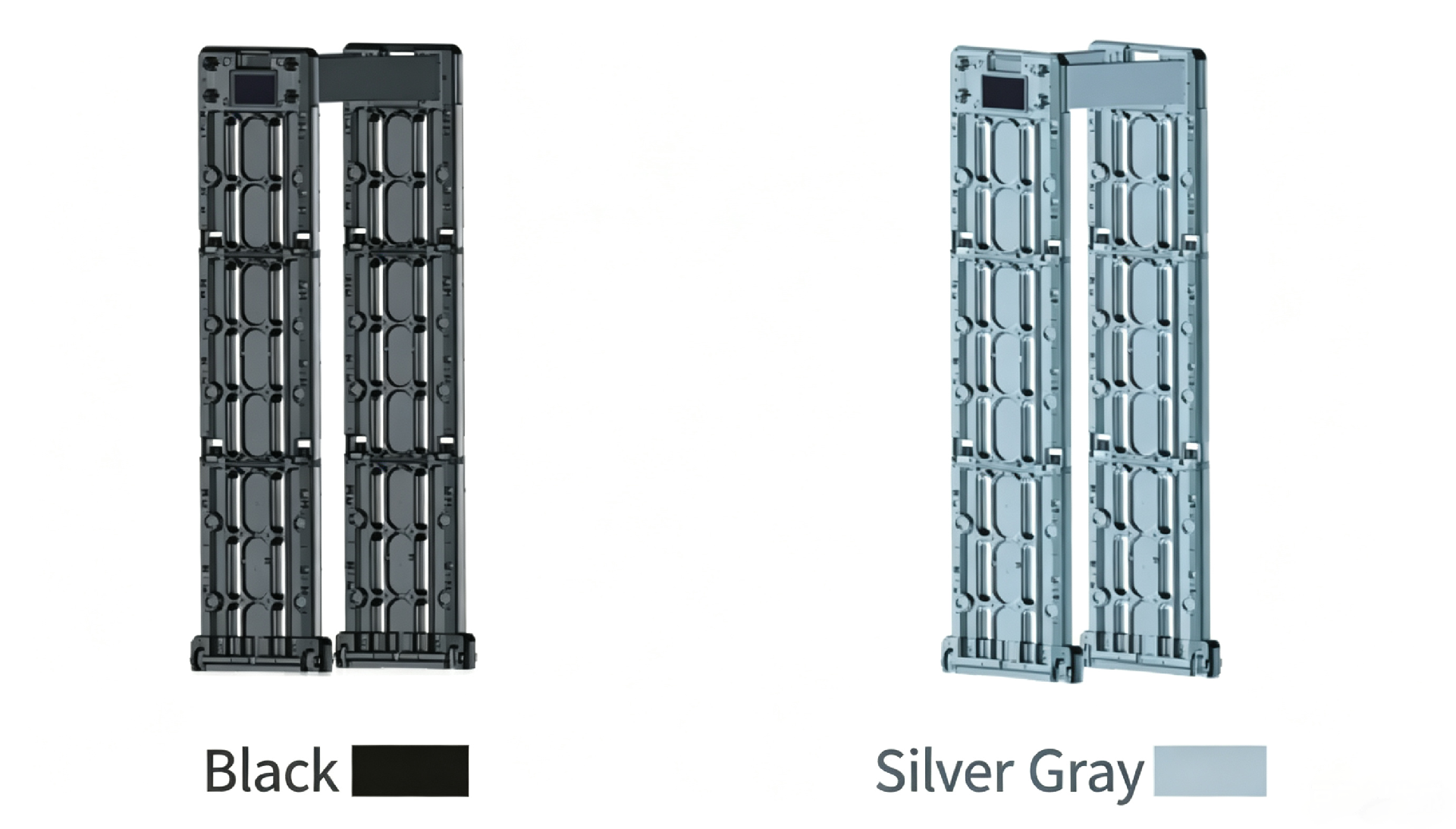

Two color options available.

Colors and patterns can be customized per customer requirements.

Display screen demonstration picture

Optional Functions Overview

Wireless Connection (Optional)

Keep tabs on the walk-through metal detector anytime, anywhere. Equipped with Wi‑Fi, 4G and Bluetooth modules for wireless internet access. Remote control and data monitoring are available via mobile APP and PC client, realizing seamless global connectivity.

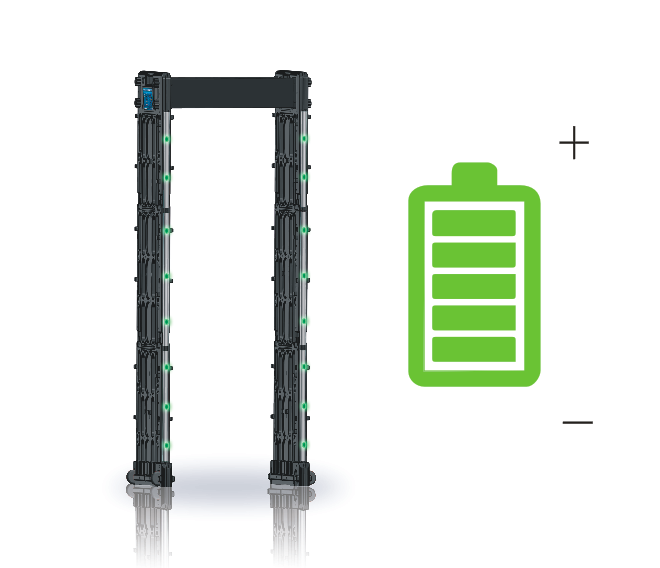

Ultra-long Power Supply Duration

All models are equipped with polymer batteries. Battery life of 4h, 8h, 16h, 24h, 48h and 72h is optional; 4-hour battery life is standard configuration.

Note: ● = Standard Configuration; ○ = Optional; / = Not Available

Removable daily metal item filtering function

●

7-inch large LCD capacitive touch screen

●

Intuitive & simple touch control panel

●

One-touch mobile remote control mode

○

Multi-unit networking interface

○

External alarm device control port

●

Secondary development / upgrade port

●

Passenger throughput statistics function

●

Alarm count statistics function

●

Historical access & throughput query function

●

Dual-layer password protection system

●

Multi-zone simultaneous detection & simultaneous alarm

●

Smart zone classification for large item detection

●

High-brightness SMD smart zoning alarm indicators

●

High-brightness SMD dual-side zone indicators

●

6 selectable working frequency bands

/

100 selectable working frequency bands

●

Mute mode setting for alarm tone

●

Adjustable alarm volume mode

●

Multi-type alarm tone selection mode

●

Front & rear single-side zone alarm indicators

○

Front single-side zone alarm indicators

/

Front dual-side zone alarm indicators

●

Front & rear four-side zone alarm indicators (Optional)

○

Adjustable sensitivity for each detection zone

●

Sensitivity of each zone adjustable within 0-255 levels

●

Security level selectable from 1 to 100

●
