  • GP‑3003B1 Hand‑held Metal Detector
  • GP‑3003B1 Hand‑held Metal Detector

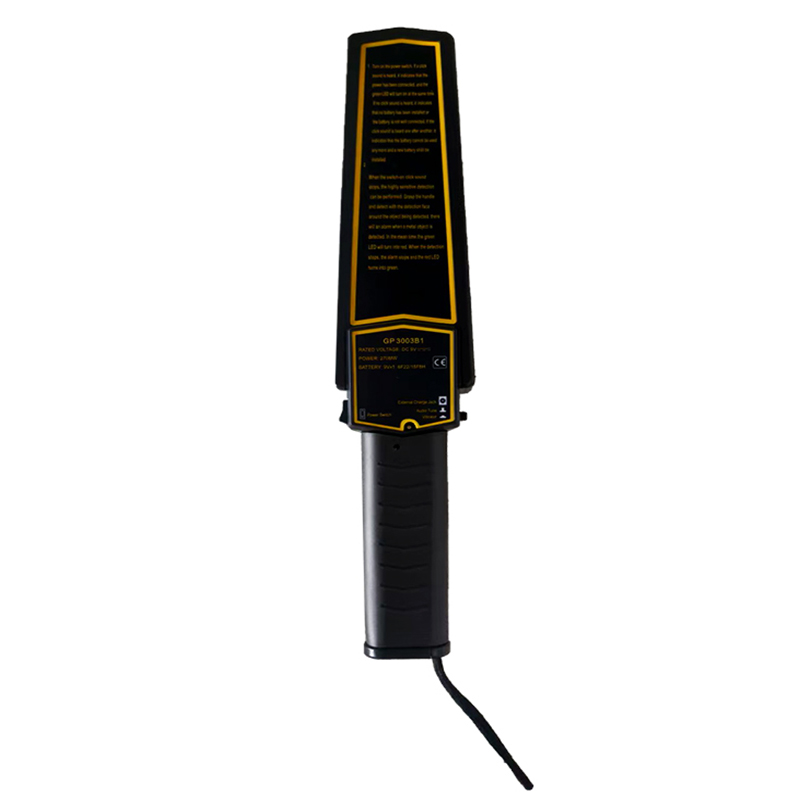

GP‑3003B1 Hand‑held Metal Detector

  • Date:2026-08-24
  • Visits:0
{pboot:if('The GP‑3003B1 Hand‑held Metal Detector adopts a cyclic switch to toggle between audio alarm and concealed vibration alarm, and supports headphone connection. It delivers high sensitivity for detecting both ferrous and non‑ferrous metals, featuring simple operation and easy adjustment. For special‑requirement scenarios, the auto‑reset function switch can be toggled to suppress detection of small‑size articles. It can detect objects as tiny as a safety pin. Supplied with a leather holster for easy carrying. It supports charging function with two options: direct charging (headphone usable while charging) and desktop charging. When the voltage is insufficient, the indicator lamp will turn off or keep alarming to remind the user. The sensitivity can be flexibly adjusted according to actual security‑inspection requirements.')} The GP‑3003B1 Hand‑held Metal Detector adopts a cyclic switch to toggle between audio alarm and concealed vibration alarm, and supports headphone connection. It delivers high sensitivity for detecting both ferrous and non‑ferrous metals, featuring simple operation and easy adjustment. For special‑requirement scenarios, the auto‑reset function switch can be toggled to suppress detection of small‑size articles. It can detect objects as tiny as a safety pin. Supplied with a leather holster for easy carrying. It supports charging function with two options: direct charging (headphone usable while charging) and desktop charging. When the voltage is insufficient, the indicator lamp will turn off or keep alarming to remind the user. The sensitivity can be flexibly adjusted according to actual security‑inspection requirements. {else} It provides mature application solutions for advertising signs, decorative building materials, craft gifts, 3C electronics, packaging and printing, textile printing, leather color printing and other fields, and realizes the product ecological chain that everything can be printed. {/pboot:if}
  • GP‑3003B1 Hand‑held Metal Detector
  • GP‑3003B1 Hand‑held Metal Detector
  • Product characteristics
  • Product Features

    l Rugged and durable; no damage after free‑fall drop from 1‑meter height.

    l Light‑weight design with large‑area detection probe for fast scanning speed.

    l Sensitivity can be adjusted externally for easy operation to meet different inspection requirements.

    l Equipped with low‑voltage indicator lamp and charging indicator lamp.


    Basic Parameter Specifications

    Model

    GP-3003B1 Hand-held Metal Detector

    Weight

    0.55 kg (including battery)

    Power Consumption

    270 mW

    Working Power Supply

    6F22 9V battery (Alkaline battery; compatible with AA rechargeable batteries)

    Operating Frequency

    22 kHz

    Operating Current

    < 50 mA

    Operating Temperature

    -25℃ ~ 65℃

    Relative Humidity

    0~95%, non-condensing

    Overall Dimensions

    340(L) × 80(W) × 45(D) mm

    Package Dimensions

    44.5 × 26.5 × 52 cm

    Product Gross Weight

    385 g

    Type-C Charging Port

    Optional

    Alarm Mode

    Simultaneous audio / vibration / light alarm

    Battery Note

    Alkaline battery can work continuously for more than 60 hours at 10%~15% alarm duty cycle

    Battery Capacity

    800 mAh rechargeable lithium battery; standby time 100 hours, continuous working time 60 hours

    Detection Accuracy

    Capable of detecting 8 mm metal objects or 0.30 g metal wire

    Detection Distance

    Safety pin: 30~60 mm;6-inch dagger: 160~180 mm;20 mm diameter steel ball: 120 mm;One-yuan coin: 75~100 mm

    Sensitivity Adjustment

    Sensitivity adjustable via potentiometer

    Magnetic Radiation Intensity

    Magnetic induction intensity at any surface point ≤ 10 μT during operation

    Anti-interference Performance

    Multiple units can operate normally without interference when spaced at 0.2 m apart
