l Programmable sensitivity.

l Extended continuous operation time.

l Automatically switches to low-power mode when no detection is in progress.

l Built-in long-life rechargeable battery; as a renewable energy source, it saves the cost of purchasing alkaline batteries repeatedly.

l Equipped with a fast and highly reliable battery charger, no need to remove the battery for charging.

l Supplied with a dedicated handheld detector bracket to minimize space occupation, along with connecting cables for power supply and battery charger.

l Operator functions support standard default settings, and can be customized per user requirements via PC graphical user interface (GUI) and USB cable.

Model

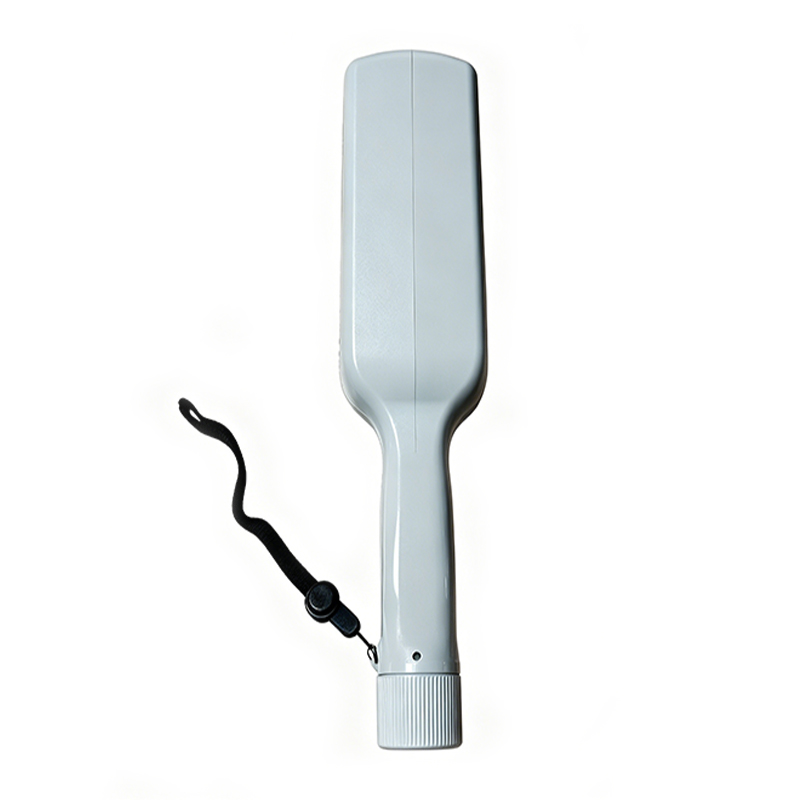

PD140E Hand-Held Metal Detector

Dimensions – PD140E

360 × 80 × 40 mm

Dimensions – HHBC

175 × 340 × 105 mm

Dimensions – Carrying Case

430 × 340 × 105 mm

Dimensions – Detection Kit Bag

450 × 320 × 110 mm

Weight – PD140E

387 g (including battery)

Weight – Desktop Battery Charger (with power adapter)

755 g

Weight – Carrying Case

1.4 kg

Weight – Detection Kit Case

2.1 kg

Color – PD140E

Gray

Color – Carrying Case

Green

Material

Manufactured with high-polymer composite material technology

Operating Temperature

-40℃ ~ +70℃

Storage Temperature

-40℃ ~ +80℃

Relative Humidity

0~98% (non-condensing)

Control Panel (Customizable)

Visual, audible and vibration alarm modes

Detection & Operation Functions

Customizable settings via hand-held metal detector configuration tool

Sensitivity

3 adjustable sensitivity levels: High / Medium / Low

Power Supply

2 × AA Ni-MH rechargeable batteries

Battery Life

Over 100 hours continuous operation (with 2500 mAh AA batteries); nearly 200 hours in auto sleep mode

Charging

Two charging methods: direct charging and desktop charging; with charging status and low-battery indicators

Compliance Standards

Complies with NIJ 0602.02 and the latest NIJ 0602.03 standards for metal detection

Complies with current international safety standards EMC and CE regulations

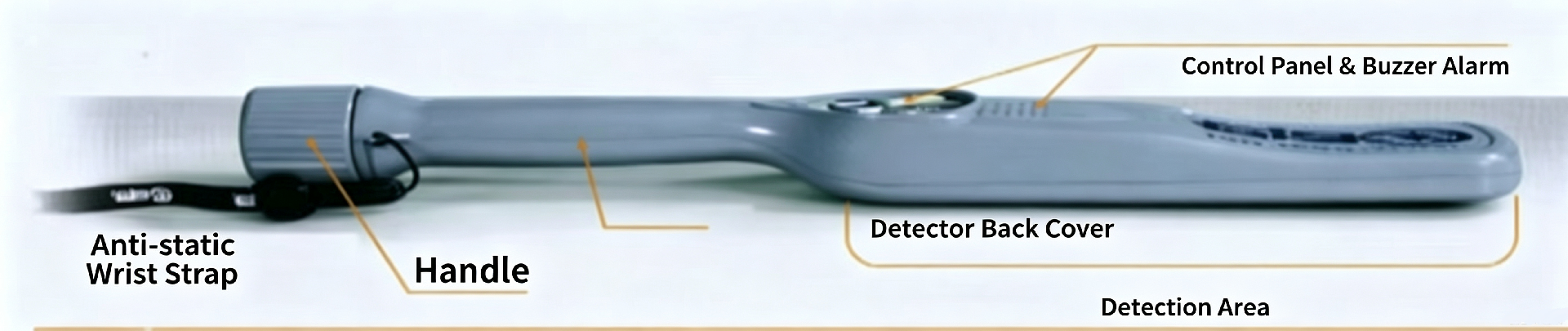

Ergonomic Design

The PD140N is equipped with a specially engineered ergonomic handle, which prevents the operator’s hand from interfering with the sensitive detection area. Great consideration has been given to the mechanical structure of the detector. The rounded edgeless design enables smooth sweeping over subjects, so that the detector will not snag on clothing buttons, shoulder straps, fabric folds or other parts of garments.

Fully‑digital Design

The PD140N adopts a fully‑digital design. Its electromagnetic functions are built upon digital signal processing technology, incorporating magnetic‑field transmitters and receivers. The device realizes external communication with a digital operator interface via the USB port. Combined with a dedicated printed antenna, this unique design ensures stable performance, high reliability and calibration‑free operation.

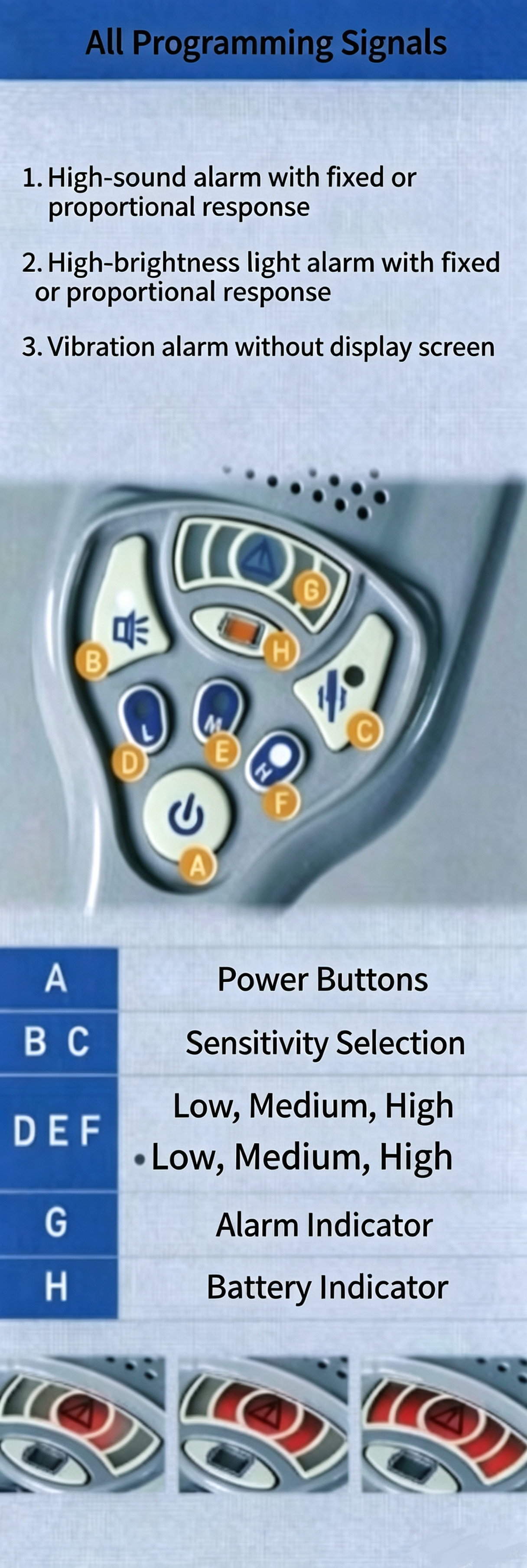

Advanced Control Panel

The control panel equipped with switches and alarm indicators is made of high‑density silicone. This material endows the PD140N detector with excellent protection performance for both indoor and outdoor use.

Alarm Indication Function

• Luminous alarm signal: When an object is detected, the device provides fixed‑brightness illumination alarm or brightness proportional to the detected signal strength.

• Audible alarm signal: The unit generates either a fixed tone or tone‑varied audio alarm proportional to the size of the detected object.

• Vibration alarm signal:The device also supports locking one or more operator commands for security managers or checkpoint supervisors.

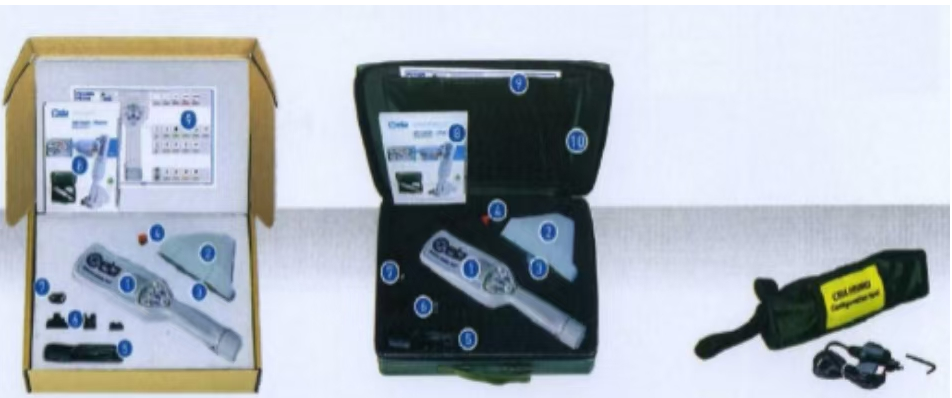

1

PD140N Hand-held Metal Detector

2

Desktop Battery Charger

3

Two-pin Parallel-type Charger

4

Universal Power Adapter

5

US, EU, UK and JP power plugs

6

Anti-static Wrist Strap

7

User Instruction Manual

8

Quick Reference Guide

9

Carrying Case
