l Ultra‑thin & Ultra‑light: Butterfly‑shaped design for easy operation. Ultra‑thin, ultra‑light and portable; total unit weight is only 1.7 kg.

l Fast‑pass Inspection: Barrier‑free screening. Operators may walk through directly after detection. Under normal conditions, the inspection rate is one person per second.

l Anti‑interference Performance: Great environmental adaptability, automatically suppresses ambient interference such as surrounding electromagnetic fields.

l Metal Quantity Display: Real‑time metal content is indicated by blue bar indicators according to the size of detected metal objects.

l Water‑resistant Design: Safe for indoor and outdoor operation (avoid direct intense sunlight exposure and heavy rain).

l Long Standby Time: Up to 48‑hour standby duration after a full charge.

l High Adaptability: No restrictions on the operator’s standing posture or shoe size.

l Digital Detection: Automatically accumulates alarm counts; stored counts can be cleared. Count data is retained after power‑off and can be reset to zero by manual reset.

l Adjustable Sensitivity: Sensitivity level can be selected according to operating environment and user requirements.

l Adjustable Volume: Equipped with a volume‑control knob for flexible volume adjustment to meet on‑site demands.

l Multi‑function: For special scenarios, it can be used as a handheld metal detector, or mounted on walls to work as a walk‑through metal detector.

l Communication Interface: Customization is available for special requirements.

l Digital Pulse Technology: Built‑in digital signal processing filtering system provides excellent anti‑electromagnetic‑interference performance.

l Modular Design: Modular structure delivers high stability, convenient inspection & maintenance, and easy fault troubleshooting.

l High‑impact Construction: Accidental collision will hardly impair detection performance; the device can keep normal working and standby status.

Alarm Mode

Intelligent voice and light alarm

Load-bearing Capacity

300kg

Net Weight

Approx. 1.7kg

Overall Dimensions

495(L) × 365(W) × 95(H) mm

Working Power Supply

DC 12V

Operating Current

110mA

Operating Power

≤2W

Standby Power

≤1W

Working Temperature

-5℃ ~ +50℃

One-Yuan Coin

＜35mm

Lighter

＜25mm

USB Flash Drive

＜20mm

Bullet Head

＜25mm

No.8 Detonator

＜30mm

AA Battery

＜60mm

Dagger

＜100mm

Utility Knife

＜50mm

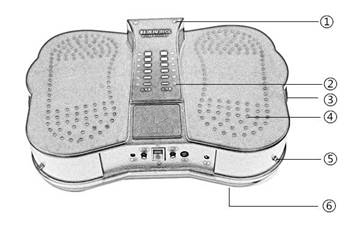

① Standby / Alarm Indicator Lamp           ② Metal Level Indicator Lights       ③ Both‑side Carrying Handles

      ④ Anti‑slip Surface for Detection Zone   ⑤ Perimeter Anti‑collision Lamps    ⑥ Bottom Anti‑slip Suction Cups

      ⑦ Volume Adjustment Knob            ⑧ Left Sensitivity Knob      ⑨ Power Switch

      ⑩ Right Sensitivity Knob         ⑪ Charging Port        ⑫ Reset Button

      ⑬ Alarm Count Display Screen
