l Programmable sensitivity.

l Extended continuous-operation time available.

l Automatically switches to low-power mode when not performing detection.

l Built-in long-life rechargeable battery; as a renewable power source, it eliminates recurring costs for alkaline batteries.

l Integrated fast and highly-reliable battery charger; battery removal is not required for charging.

l Supplied with dedicated detector holder for minimum footprint, together with power and charger connection cables.

l Operator functions are available in standard configuration or can be customized per user requirements via PC graphical user interface and USB cable.

Model

PD140N Hand-held Metal Detector

Dimensions

PD140N

360 × 80 × 40 mm

HHBC

175 × 340 × 105 mm

Carrying Case

430 × 340 × 105 mm

Detection Kit Package

450 × 320 × 110 mm

Weight

PD140N

387g (including battery)

Desktop Battery Charger (with power adapter)

755g

Carrying Case

1.4kg

Detection Kit Case

2.1kg

Color

PD140N

Grey

Portable Hand-held Case

Green

Material

Made of high-molecular polymer composite material

Operating Temperature

-40℃ — 70℃

Storage Temperature

-40℃ — 80℃

Relative Humidity

0~98% (non-condensing)

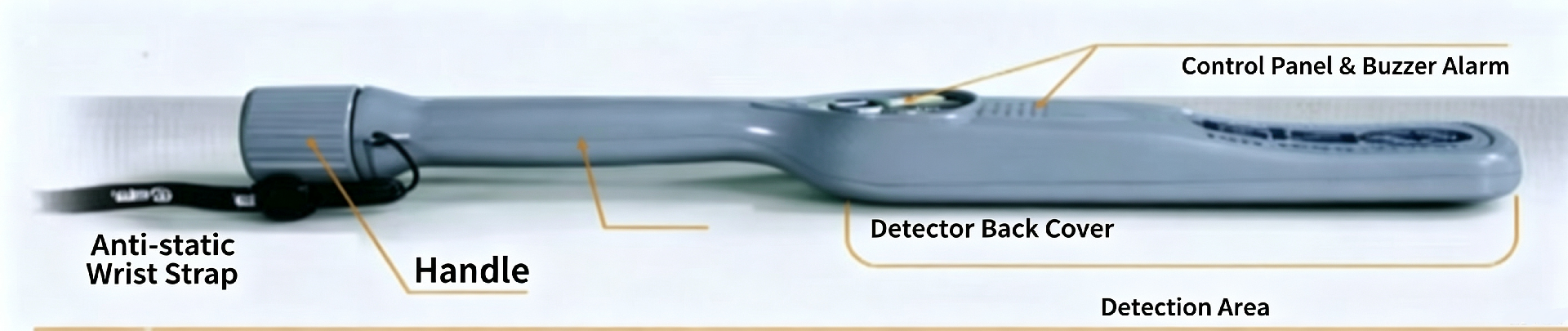

Ergonomic Design

The PD140N is equipped with a specially engineered ergonomic handle, which prevents the operator’s hand from interfering with the sensitive detection area. Great consideration has been given to the mechanical structure of the detector. The rounded edgeless design enables smooth sweeping over subjects, so that the detector will not snag on clothing buttons, shoulder straps, fabric folds or other parts of garments.

Fully‑digital Design

The PD140N adopts a fully‑digital design. Its electromagnetic functions are built upon digital signal processing technology, incorporating magnetic‑field transmitters and receivers. The device realizes external communication with a digital operator interface via the USB port. Combined with a dedicated printed antenna, this unique design ensures stable performance, high reliability and calibration‑free operation.

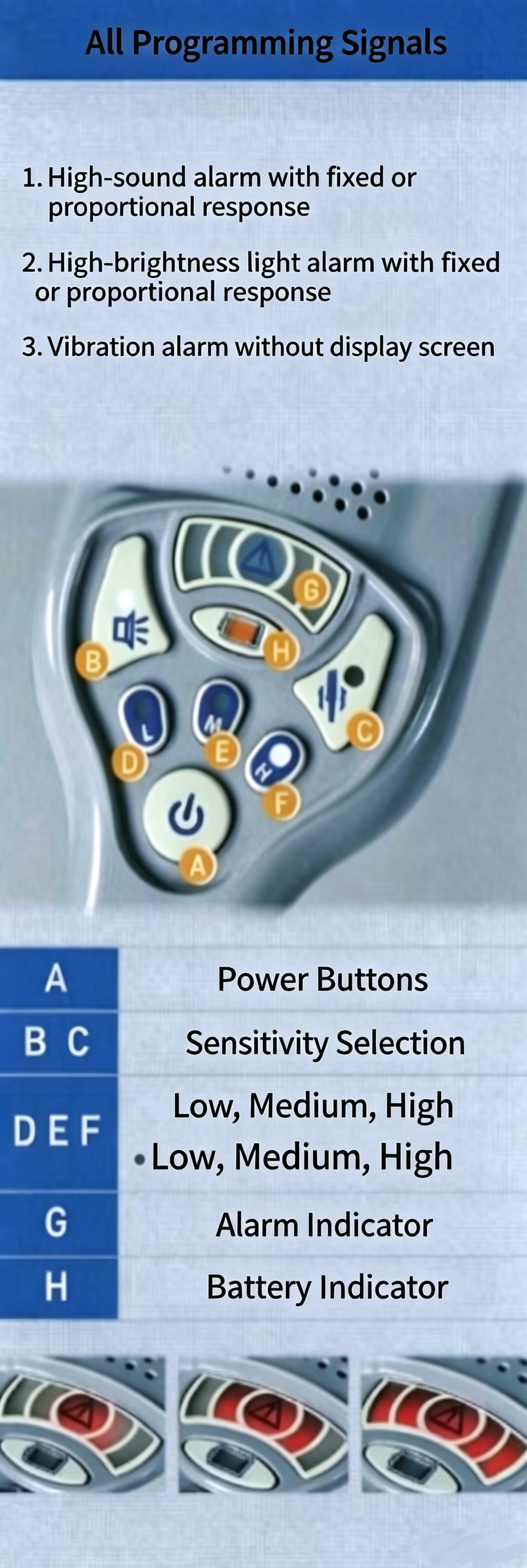

Advanced Control Panel

The control panel equipped with switches and alarm indicators is made of high‑density silicone. This material endows the PD140N detector with excellent protection performance for both indoor and outdoor use.

Alarm Indication Function

• Luminous alarm signal: When an object is detected, the device provides fixed‑brightness illumination alarm or brightness proportional to the detected signal strength.

• Audible alarm signal: The unit generates either a fixed tone or tone‑varied audio alarm proportional to the size of the detected object.

• Vibration alarm signal:The device also supports locking one or more operator commands for security managers or checkpoint supervisors.

1

PD140N Hand-held Metal Detector

2

Desktop Battery Charger

3

Two-pin Parallel-type Charger

4

Universal Power Adapter

5

US, EU, UK and JP power plugs

6

Anti-static Wrist Strap

7

User Instruction Manual

8

Quick Reference Guide

9

Carrying Case
