WD-300 W Type Digital Display Walk-Through Metal Detector
- 发布日期：2026-07-15
- 访问量：1061 次
- 产品特性
Product Features
l Human Safety: Harmless to pacemaker wearers, pregnant women and magnetic media.
l Multi‑zone Technology: Multiple overlapping detection zones.
l Enclosure Protection Technology: Adopts high‑density fire‑resistant materials.
l Password Protection: Operation accessible only to authorized operators.
l Ultra‑high Sensitivity: Capable of detecting a single coin placed in the central area.
l Adaptive Diagnosis System: Automatic diagnosis at power‑on; no initial or periodic calibration required.
l Anti‑interference Performance: 12 adjustable working frequency channels; multiple devices support simultaneous visual alarm.
l Modular Design: Convenient for maintenance and part replacement.
l Detection Capacity: Passage throughput of 60‑150 persons per minute.
l Turnstile Linkage Function: Walk‑through metal detector interlocked with turnstile to manage personnel triggering alarms. (Optional).
l Battery: 6‑hour power‑supply battery. (Custom‑made).
Basic Parameter Indicators
Model
WD-300W
Detection Zones
6 independent detection zones
Overall Sensitivity
0~255 levels
Passage Speed
0.4M/S~1.2M/S
Power Consumption
＜30W
Frequency Channels
1~12 channels
Compliant Standards
GB15210-2018
Total Unit Weight
Approx. 70kg
Operating Ambient Temperature
-20℃ ~ +45℃
Operating Voltage
AC110V/240V — 50/60Hz
Inner Aisle Dimension
1980(H) × 700(W) mm
Overall External Dimension
2200(H) × 810(W) × 400(D) mm

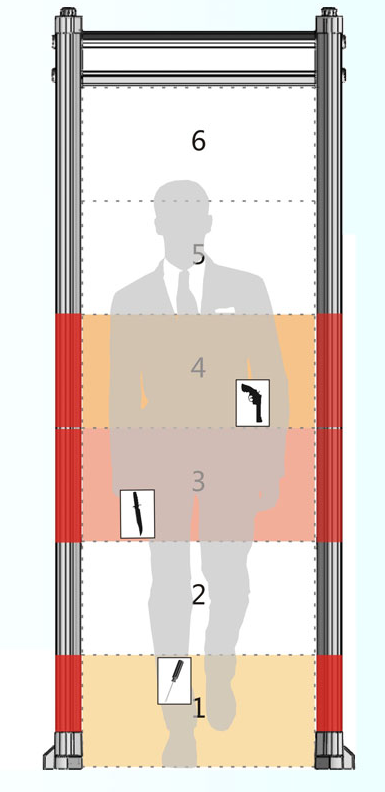

Detection Zones Setting Diagram
Note: Configurable for 6 zones.
