l Human‑body Safety: Harmless to pacemaker wearers, pregnant women and magnetic media.

l Display Function: Equipped with a 29‑inch LCD screen. The main interface automatically updates and displays pass‑through count and alarm count for intuitive and clear information presentation. (Dual‑side 29‑inch screens are optional for additional installation)

l Gate Body Design: Wide‑body door panel design. The enclosure is stable, robust, durable and anti‑deformation.

l Detection Zones: Divided into 18 detection zones, and suspicious objects can be accurately displayed in each zone.

l Multi‑zone Alarm Function: 6 alarm zones on each side to indicate the alarm position of mobile phones.

l Two‑side Positioning Lights: LED lights are installed on both sides of the gate to visually indicate the location of contraband. (Four‑side LED lights are optional, achieving a 360° viewing angle.)

l System: Adopts high‑stability system with extensive expandable functions.

l Hardware & Software Facilities: High‑performance CPU with 6‑core high‑performance chip, main frequency over 1.8 GHz. Application software can be upgraded via USB.

l Automatic Calibration: Built‑in automatic calibration mode. The device calibrates automatically according to site conditions upon installation to suppress interference.

l Graphical Signal Display: Detection signals are displayed in graphical waveform for straightforward status overview.

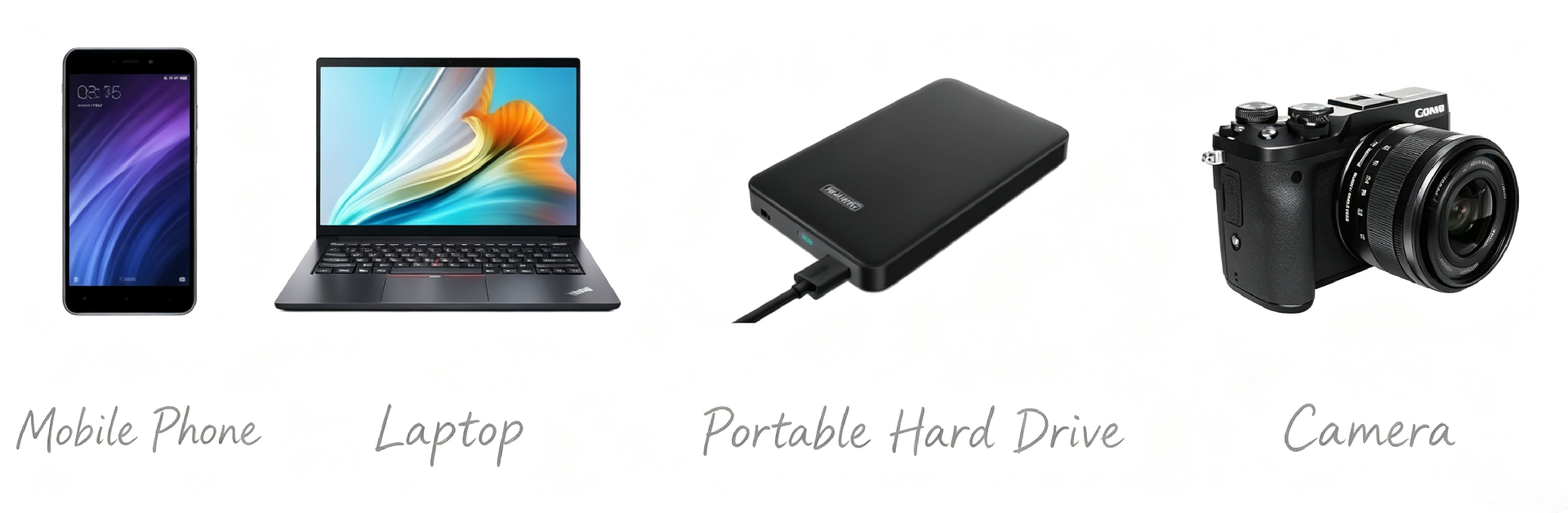

l Multi‑mode Switching: Supports mobile‑phone detection mode, knife‑gun contraband mode, full‑metal mode and user‑customized mode.

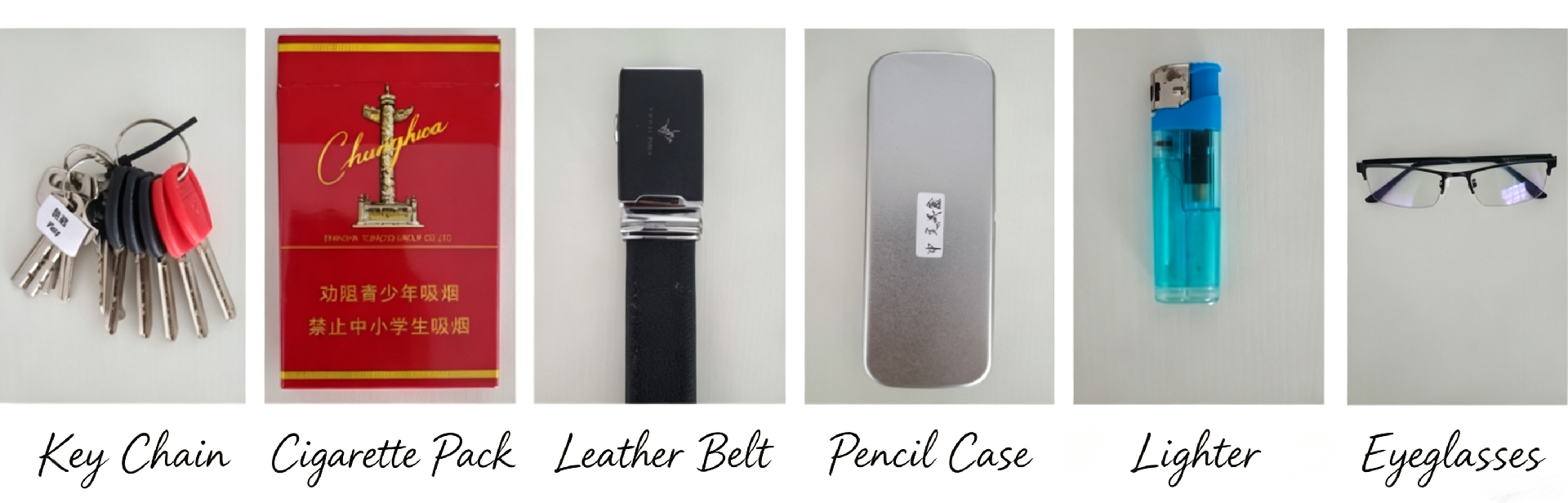

l Daily‑article Filtering: Filters out daily articles such as belt buckles, glasses, pens and pencil boxes for mobile‑phone detection.

l Bi‑directional Passage: Supports bi‑directional passage. Effective detection is available for personnel entering from either the inlet or outlet side of the gate.

l Voice Broadcast: Supports voice broadcast, and users can customize broadcast content.

l Audible‑visual Alarm: Supports voice alarm and flashing LED‑strip alarm.

l Indicator Light Debugging: Indicator light debugging function enables quick troubleshooting.

l Remote Operation: Parameters can be configured via wireless mouse and keyboard. Parameters are protected by password; unauthorized personnel cannot operate the device.

l Network Management: Reserved communication interfaces for data sharing with PCs.

l Linkage Function: (Linkage interface is optional for linkage control with wing turnstiles and tripod turnstiles.)

Model

WD-M600A

Passage Speed

1M/S~2M/S

Power Consumption

＜60W

Operating Frequency

Adjustable according to installation environment

Total Weight

Approx. 165kg

Operating Ambient Temperature

-10℃ ~ +40℃

Operating Humidity

95%, non-condensing

External Power Supply

187V/220V-50/60Hz

Inner Aisle Dimension

2050(H) × 780(W) × 600(D) mm

Overall External Dimension

2400(H) × 1020(W) × 600(D) mm

Operating System

Android system

CPU

RK3399, 6-core

RAM/ROM

8GB

Camera Pixel

2 Megapixels

Visible-light Resolution

1920×1080

Excluded Item Display
