l Human‑body Safety: Harmless to pacemaker wearers, pregnant women and magnetic media.

l Display Function: Equipped with a 29‑inch LCD screen. The main interface automatically updates and displays pass‑through count and alarm count for intuitive and clear information presentation. (Dual‑side 29‑inch screens are optional for better visual effect.)

l Gate Body Design: Wide‑body door panel design. The enclosure is stable, robust, durable and anti‑deformation.

l Detection Zones: Divided into 15 detection zones, and suspicious objects can be accurately displayed in each zone.

l Multi‑zone Alarm Function: 5 alarm zones on each side to indicate the alarm position of mobile phones.

l Positioning Lights: LED lights are installed on both sides of the gate to visually indicate the location of contraband with a 360° viewing angle. (Front‑and‑rear four‑side LED lights are optional.)

l System: Adopts LINUX system with high stability and rich expandable functions.

l Hardware & Software Facilities: High‑performance 6‑core CPU with main frequency over 1.8 GHz. Application software can be upgraded via USB (communication interface reserved).

l Automatic Calibration: Equipped with automatic calibration mode. The device calibrates automatically according to site conditions during installation to shield interference.

l Graphical Signal Display: Detected signals are presented in graphical waveform for clear overview of device status.

l Multi‑mode Switching: Supports mobile‑phone detection mode, knife‑gun contraband mode, full‑metal mode and user‑customized mode.

l Daily‑article Filtering: Filters out daily articles such as belt buckles, glasses, pens and pencil boxes for mobile‑phone detection.

l Bi‑directional Passage: Supports bi‑directional passage. Effective detection is available for personnel entering from either inlet or outlet of the gate.

l Voice Broadcast: Contraband voice broadcast is supported, and users may customize broadcast content.

l Audible‑visual Alarm: Supports voice alarm and strip‑light flashing alarm.

l Indicator Light Debugging: Manual indicator‑light debugging function enables rapid troubleshooting.

l Remote Operation: Parameters can be set by wireless mouse and keyboard. Parameters are password‑protected to prevent operation by unauthorized personnel.

l Network Management: Communication interfaces reserved for data sharing with PCs and security inspection platforms.

l Linkage Function: (Linkage interface reserved as optional, for linkage control with wing turnstiles and tripod turnstiles.)

Model

WD-M600

Pass-through Speed

1M/S–2M/S

Power Consumption

＜40W

Operating Frequency

Adjustable according to installation environment

Overall Weight

Approx. 165kg

Operating Temperature

-10℃ ~ +40℃

Operating Humidity

95%, non-condensing

External Power Supply

187V/220V-50/60Hz

Inner Passage Dimension

＜1989(H)×720(W)×610(D)mm

Overall External Dimension

＜2420(H)×970(W)×650(D)mm

Operating System

LINUX

CPU

RK3399 6-Core

RAM/ROM

8GB

Camera Pixels

2.0 Megapixel

Visible-light Resolution

1920×1080

Temperature Measuring Range

30℃~50℃

Thermal Imaging Resolution

256 * 192 (Optional)

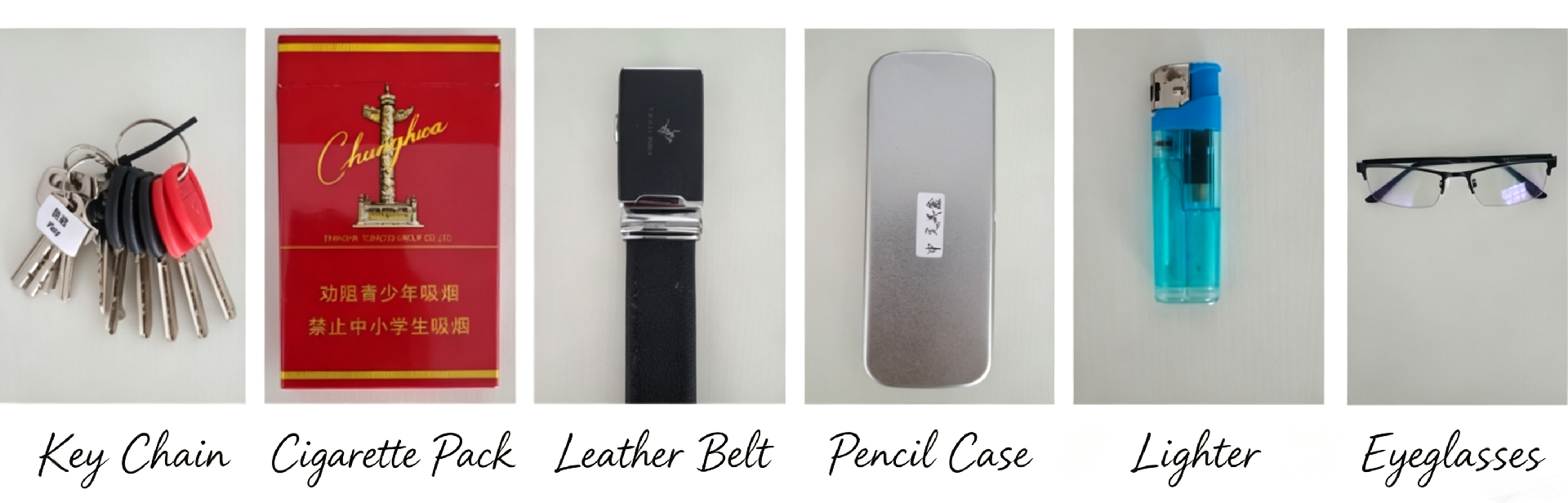

Excluded Item Display
