l Human‑body Safety: Harmless to pacemaker wearers, pregnant women and magnetic media.

l Display Function: Equipped with a ≥7‑inch color LCD screen. The graphic‑based debugging interface is simple and user‑friendly. Menu display with Chinese‑English language selection. Background environmental interference signals are displayed in real‑time for targeted adjustment during installation.

l Password Operation: Password‑protected access, only authorized personnel are permitted for operation for enhanced security.

l Gate Body Design: Door panels adopt double 9 mm high‑density high‑strength boards to improve the stability of the security gate.

l Multi‑zone Technology: Divided into 6‑18‑33 detection zones according to human‑body anatomy. Sensitivity distribution across detection zones is uniform without blind spots. Global sensitivity and sensitivity of each zone can be independently adjusted within 0‑999 levels. Paper clips can be detected under favorable environmental conditions.

l Zone Sensitivity Calibration Indication: During zone‑sensitivity calibration, the indicator light for the adjusting zone lights up to notify operators. Non‑calibrated zones will not perform detection, helping operators identify zones for sensitivity calibration.

l Operating Frequency Bands: Up to 100 operating frequency bands (0‑99). Multiple units can work side‑by‑side with 50 cm spacing without mutual interference.

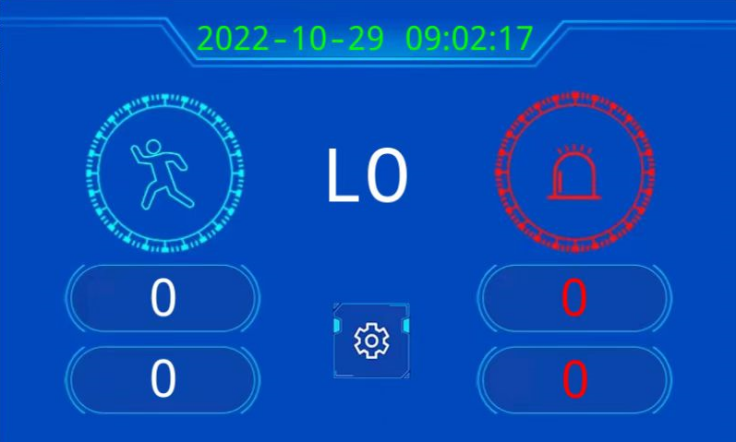

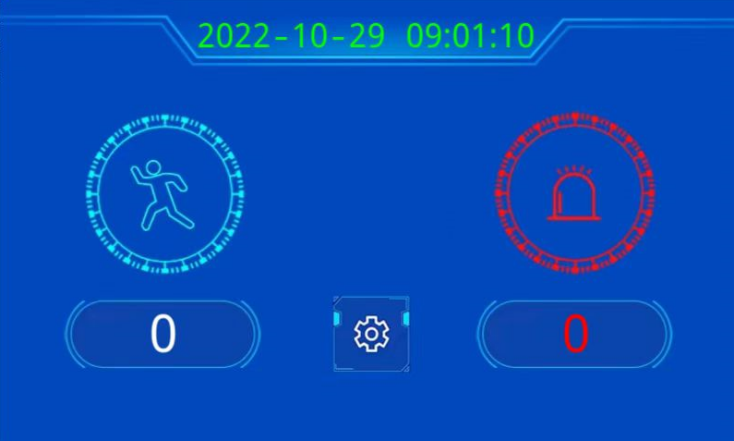

l Intelligent Recording: Built‑in intelligent passenger‑flow and alarm counter. It automatically displays and records alarm counts and pass‑through numbers in real‑time. Mass storage for up to 100 000 records for real‑time review.

l Flying‑object Detection Function: Prevents objects from being passed through the gate without personnel walking through.

l Power‑on Self‑test Function: Upon power‑on, graphical fault location prompt will be shown on screen if equipment faults are detected.

l Anti‑electromagnetic Interference: Adopts DSP digital signal processing technology. It automatically scans mechanical and electromagnetic interference at installation sites and adapts to working conditions. It provides high immunity against electromagnetic and mechanical interference. Periodic manual calibration is not required, greatly improving anti‑interference performance.

Provided with RS232 interface, communication interface and Ethernet port. (Network‑connecting function is optional)

Model

WD-300F

Detection Zones

33 independent detection zones

Global Sensitivity

Level 0~999

Passage Speed

0.4M/S~1.2M/S

Power Consumption

＜9W

Frequency Bands

0~99 units

Total Weight

Approx. 65kg

Operating Ambient Temperature

-20℃ ~ +50℃

Inner Aisle Dimension

2000(H) × 700(W) mm

Overall External Dimension

2200(H) × 840(W) × 500(D) mm

Main-unit Outer-case Dimension

75(H) × 225(W) × 445(D) mm

Door-panel Carton Dimension

2350(H) × 650(W) × 190(D) mm

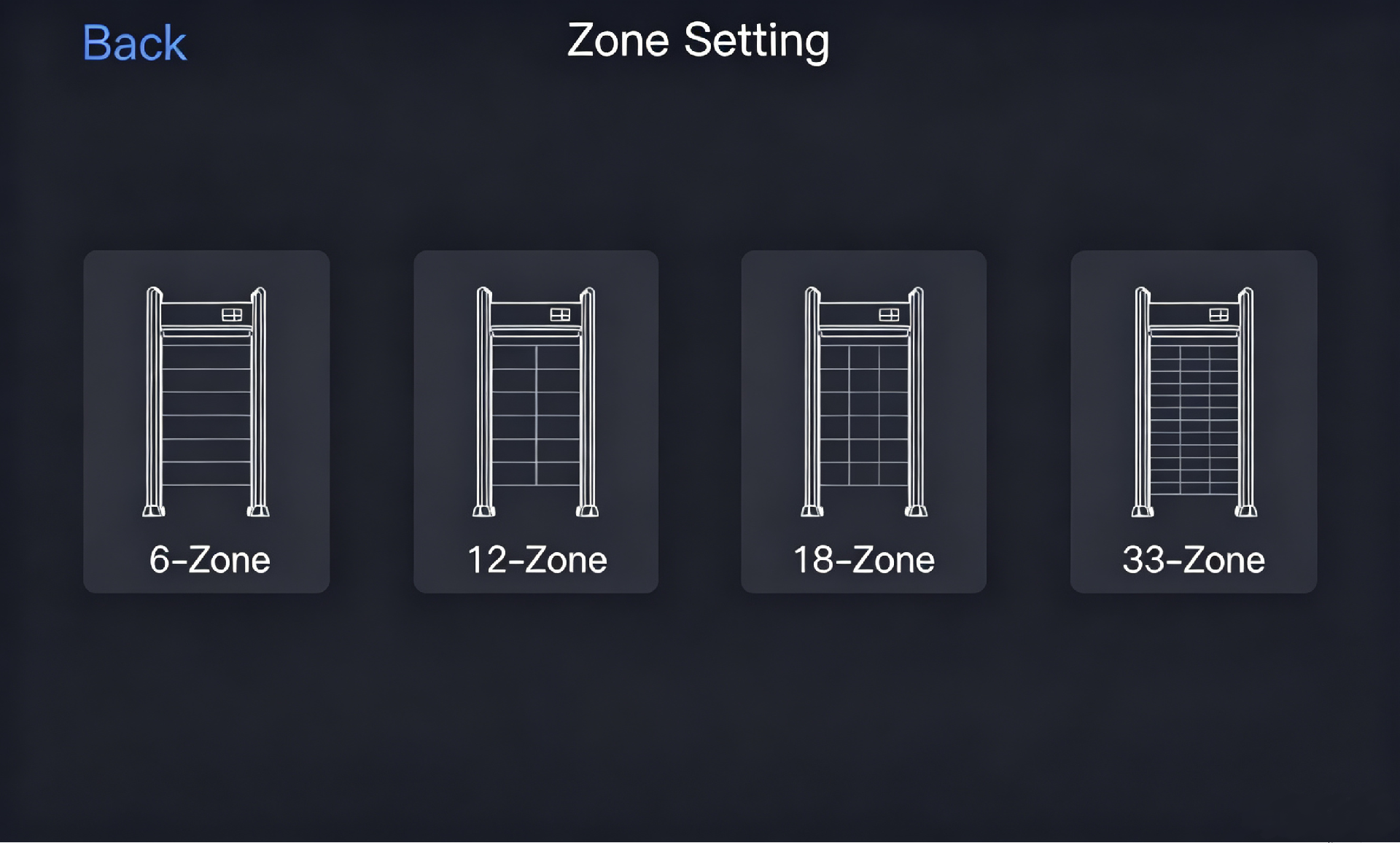

Detection Zone Setting Display
