Specifications of Amorphous‑Silicon (a‑Si) Flat‑Panel Detector:

(1) Effective Area: ≥ 350mm × 430mm

(2) Overall Dimensions: ＜ 460mm × 380mm × 15 mm

(3) Thickness: ＜ 15 mm

(4) Weight: ＜ 2.4 kg

(5) Scintillator Material: Gadolinium Oxysulfide (GOS)

(6) Pixel Size: ＜ 150 μm

(7) Spatial Resolution: ≥ 2.5 Lp/mm

(8) Bottom Blind Zone: ≤ 10 mm; Left and Right Blind Zones: ＜ 15 mm

(9) Equipped with battery level indicator for convenient charging, maintenance and upkeep.

(10) Continuous Working Time: 6 hours with rechargeable battery; unlimited continuous operation under AC power supply.

(11) Image Dynamic Range: 16‑bit, 65536 gray levels; capable of visualizing fine wires as thin as 0.046 mm.

(12) Wired Communication: compatible with 100‑Mbps and Gigabit Ethernet (GbitE).

(13) Wireless Communication: dual‑band 2.4G and 5.8G; wireless remote‑control distance up to 50 M.

(14) Protective Material: high‑strength carbon‑fiber plate.

X‑ray Generator Specifications:

(1) Tube Voltage Range: 60 kV

(2) Tube Current Range: 2 mA

(3) Dimensions: 210 mm × 166 mm × 90 mm

(4) Focal Spot: 1.0 mm

(5) Weight: 2.5 kg

(6) Power Supply: Dual‑power support of AC power supply and lithium‑battery power supply

(7) Data Control: Wireless and wired control

Software & Notebook Specifications：

Full‑screen touch operation. Image processing adjustments such as zoom‑in, zoom‑out, grayscale and brightness can be realized by pinching and spreading gestures with fingers. High‑resolution 17‑inch color display; Intel Core i5 processor; 4 GB memory; 500 GB hard disk; built‑in DVD‑RW optical drive; 14.1‑inch TFT LCD screen; 1 GB dedicated graphics card.

Features: This system is compatible with all light sources available on the market for user selection.

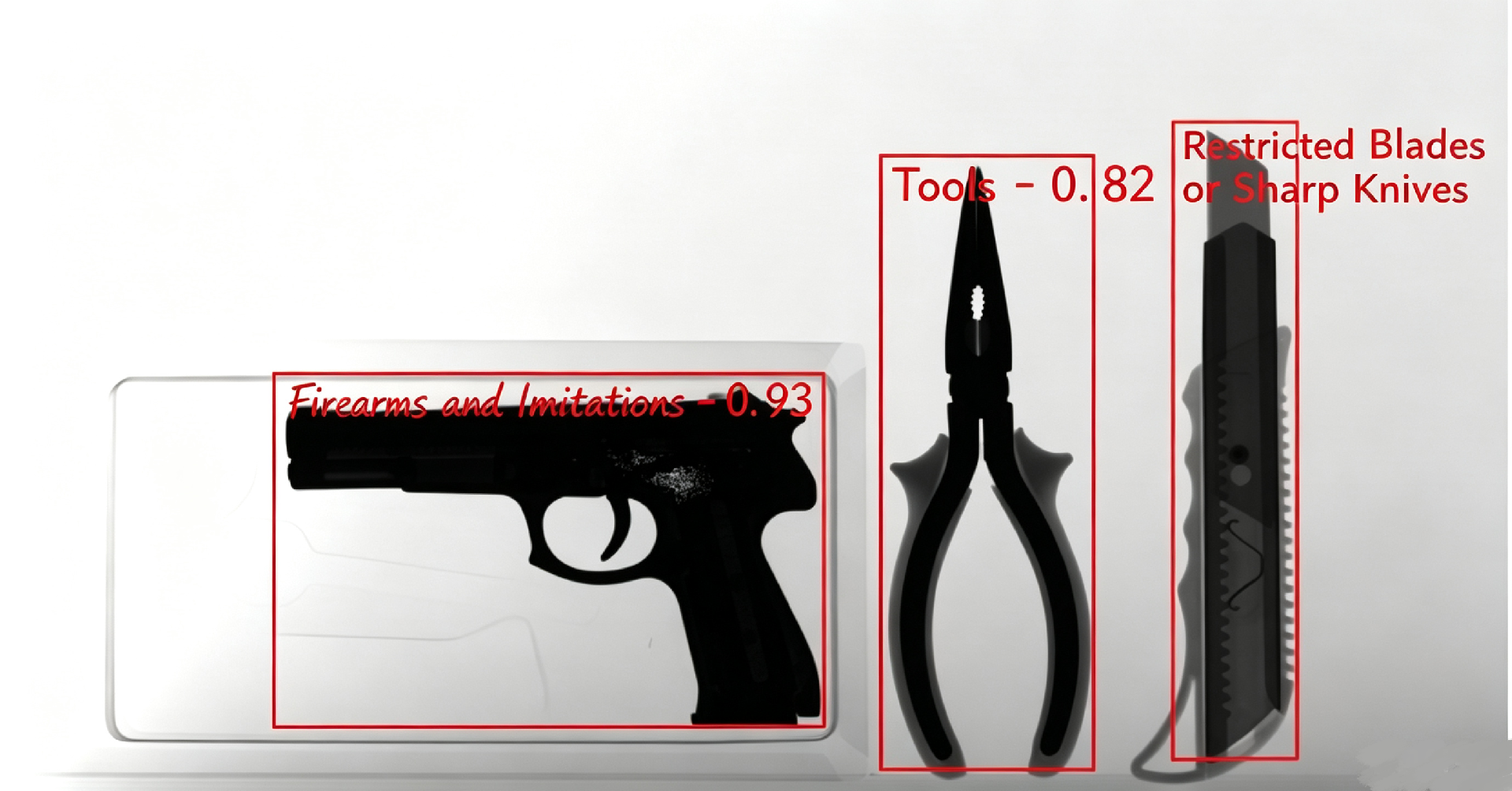

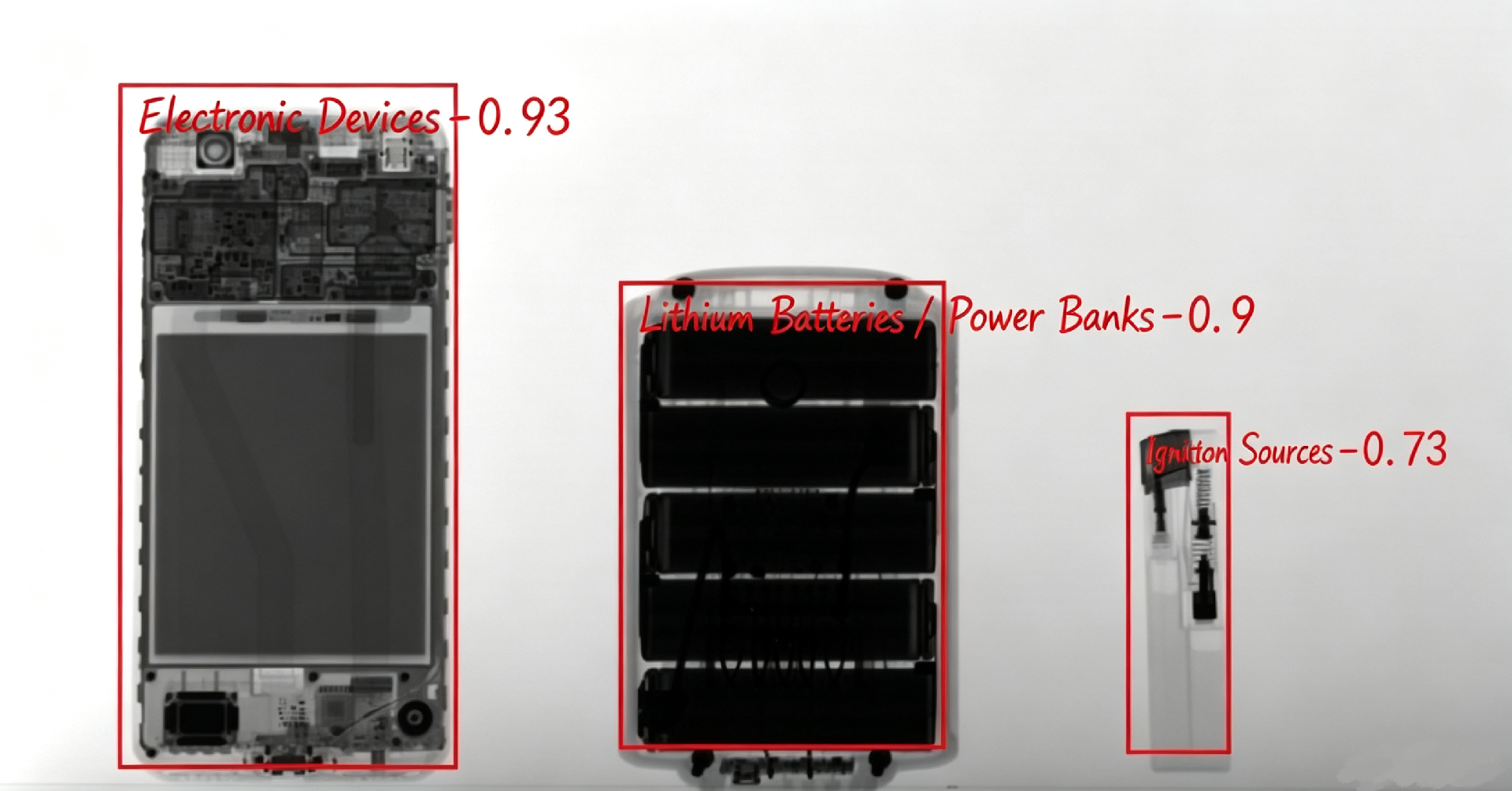

Intelligent AI Contraband Recognition：

Relying on intelligent servers, it performs real‑time analysis to identify contraband inside parcels. It features high accuracy, wide recognition coverage, real‑time database updates and other advantages, which shortens inspection time and improves the working efficiency of inspectors.

Rendering：

            Object under inspection: Full view of notebook computer
