1.Material: Amorphous‑Silicon (a‑Si)

2.Imaging Size: 430mm × 350mm

3.Overall Dimensions: 460mm × 460mm × 15mm

4.Spatial Resolution: 4 Lp/mm, capable of resolving fine wires of 0.03 mm

5.Image Resolution: 2560 × 3072

6.Thickness: 15 mm

7.Weight: 3.5 kg

8.Blind Zones: ≤18 mm for both top and bottom

9.Image Dynamic Range: 16‑bit, 65536 gray levels

10.Wired Communication: compatible with 100‑Mbps and Gigabit Ethernet (GbitE)

11.Wireless Communication: Dual‑band 2.4G and 5.8G

12.Operating / Storage Temperature & Humidity: Temperature: 55±2℃ / ‑15±3℃ ~ 55℃ for 15 h; Humidity: 93±3%RH (non‑condensing), continuous operation for 48 h

X‑ray Generator Specifications: (Optional compatible sources including XRS‑3, XR200, CP120 and others)

1.Weight: 2.3 kg;

2. Output Voltage: 0‑85 kV continuously adjustable, constant‑current continuous output;

3.X‑ray Penetration Power: 120 mm aluminum plate (20 mm steel plate);

4.Combined charging‑trigger interface, effectively reducing the number of cable connectors;

5. Electroplated stainless‑steel dust‑proof and water‑proof buttons with power‑on indicator;

6.Anti‑misoperation handle design (adjustment knob is directly below the handle; all switches, buttons and interfaces are within the handle’s protective coverage);

7.Power Supply: Dual‑mode for battery, AC and DC power input

1.Display: 14‑inch or larger; Operating System: Windows 7 or higher

2.Memory: 8 GB RAM or higher; Solid‑State Drive: 512 GB SSD or higher

3.Fully Chinese‑language user interface with touch‑control support.

4.Full‑screen touch operation. Image processing adjustments including zoom‑in, zoom‑out, grayscale and brightness can be performed via finger pinch‑to‑zoom gestures.

5.Basic functions: image acquisition, image storage, image measurement, pseudo‑color and others.

6.Auto‑processing function: captured images can be automatically optimized for best display within the software.

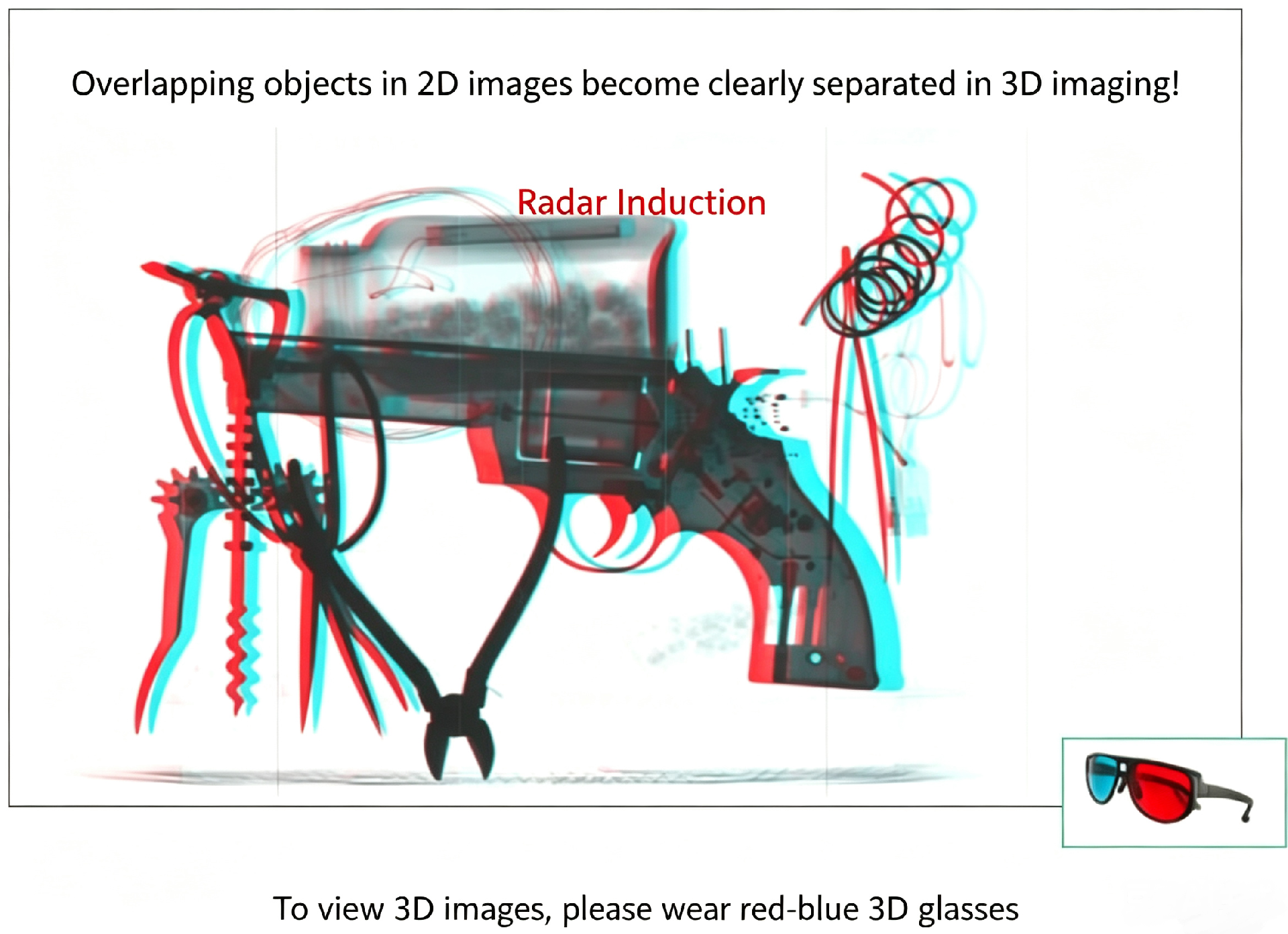

7.Auto / manual image stitching function, supporting stitching of no less than 9 images; equipped with 3D function.

8.Image processing functions: edge extraction, negative image, pseudo‑color, stitching, annotation, scaling, rotation, mirroring, embossing, dimension measurement, etc. Archive inquiry is available according to various filter conditions.
