lThe portable X-ray inspection system consists of an imaging panel, X-ray source, control box, laptop and other components.

l Image resolution ≥2560×3072; security inspection can be performed in confined spaces without moving suspicious objects, and filaments as thin as 0.036 mm can be identified.

l Imaging Panel: Effective area ≥430mm×350mm; Thickness ≤15mm; Weight ≤3.4kg.

l X-ray Generator: Weight ≤2.3kg; capable of penetrating 70 mm aluminum plate and 14 mm steel plate.

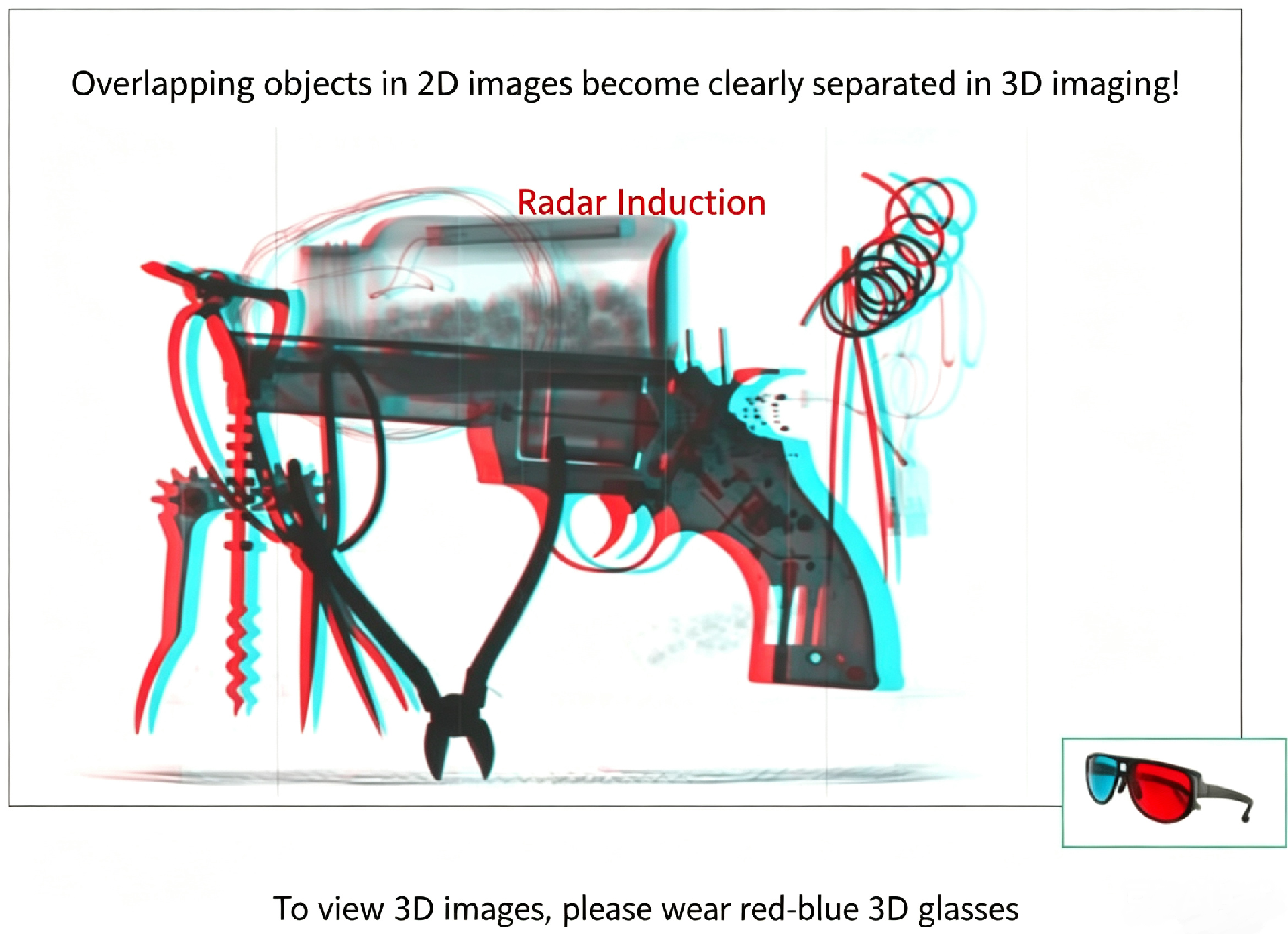

lStandard Built-in Software Functions: 3D imaging (non-relief, viewed with 3D glasses), dual-energy imaging, measurement (supports measurement for rectangles, ellipses and irregular shapes, with perimeter and area calculation functions).
