Human-body Safety：Harmless to pacemaker wearers, pregnant women and magnetic media.

Display Function：Digital tubes display the number of passing personnel and alarm counts. When the detector triggers an alarm, the indicator lights on the front door pillars light up simultaneously. The alarm zone can also be viewed on the front panel.

Password Operation：Password protection restricts operation to authorized personnel only for enhanced security.

Multi-zone Detection Technology：6 detection zones with freely adjustable sensitivity (level 0~199). High-brightness LED alarm indicators accurately locate concealed contraband.

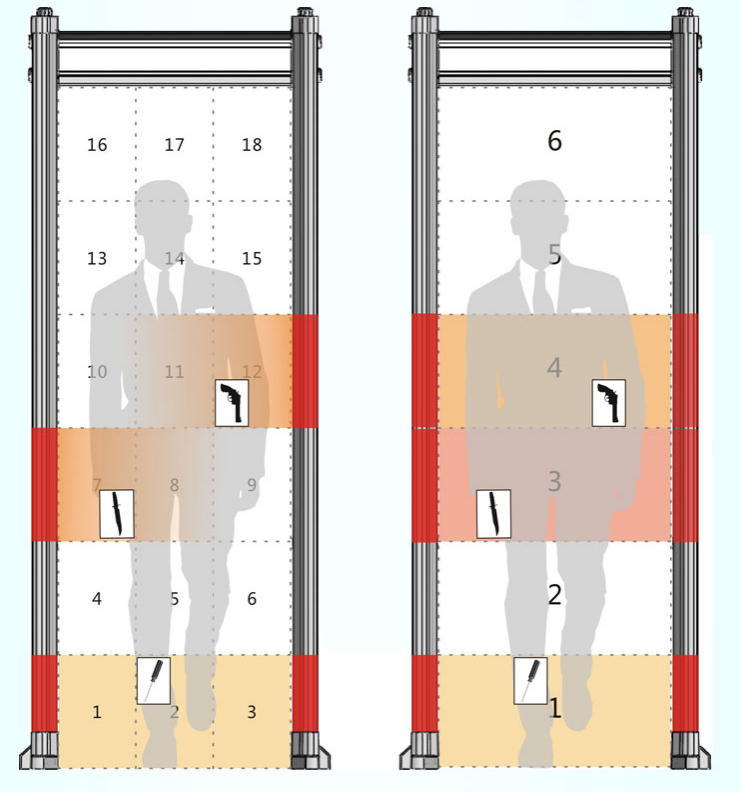

Multi-zone Detection Function：Six mutually-overlapping metal detection zones. Adopting digital pulse technology with interactive transmitting and receiving across six protection zones, it accurately pinpoints the position of suspicious objects in each zone. (12-zone or 18-zone versions are customizable).

Flying-object Detection Function：Prevents articles from being passed through the gate without personnel passing through.

Power-on Adaptive Diagnosis：The system performs adaptive self-diagnosis upon startup and displays faults.

Automatic Frequency-adjustment Function：Automatically adjusts operating frequency at power-on and responds to surrounding interference frequencies to reduce setup difficulty. Composite circuit design allows flexible signal-frequency adjustment. Equipped with advanced infrared scanning, it rapidly captures induction signals. Multiple networked detectors can work simultaneously without mutual interference.

Built-in Quick Setting for Application Scenarios：Preset quick settings for different application sites with selectable alarm ringtones for fast user configuration.

Personnel In-out Counting：High-precision statistics to evaluate the rationality of entrance-exit layout. It can record up to 9999 events. Dual-beam infrared sensors automatically count passing persons and alarm events with 100-percent accuracy.

Anti-shock Design：Exclusive global anti-shock design for stable operation in crowded environments. Slapping the door panel will not trigger false alarms.

Gate Body Material：Fire-proof board coated with waterproof material. Waterproof foot sleeves are fitted at top and bottom of the gate body with alloy support pillars. Features anti-deformation, waterproof, fire-proof and anti-corrosion performance.

Alarm Function：Adjustable alarm ringtone and volume; simultaneous audible-visual alarm. When suspicious objects are detected, an alarm sounds and the alarm zone is shown on the front panel.

Power-failure Protection：Built-in rechargeable battery. It automatically charges the battery under external power supply and switches over to battery power upon mains power cut-off.

Turnstile Linkage Function：Linkage between walk-through detector and turnstile to manage alarming personnel (Optional).

Casters：Mobile casters for convenient relocation (Optional).

Battery:Backup battery with 6-hour working duration (Customizable).

Model

WD-300C

Detection Zones

6 independent detection zones

Overall Sensitivity

Level 0~199

Pass-through Speed

0.4M/S~1.2M/S

Power Consumption

＜35W

Frequency Bands

1~12 channels

Compliant Standard

GB15210-2018

Total Weight

Approx. 80kg

Operating Ambient Temperature

-20℃ ~ +55℃

Operating Voltage

AC220V — 50/60Hz

Inner Passage Dimension

1985(H) × 700(W) × 580(D) mm, customizable

Overall External Dimension

2200(H) × 833(W) × 580(D) mm, customizable
