l Human-body Safety:Harmless to pacemaker wearers, pregnant women and magnetic media.

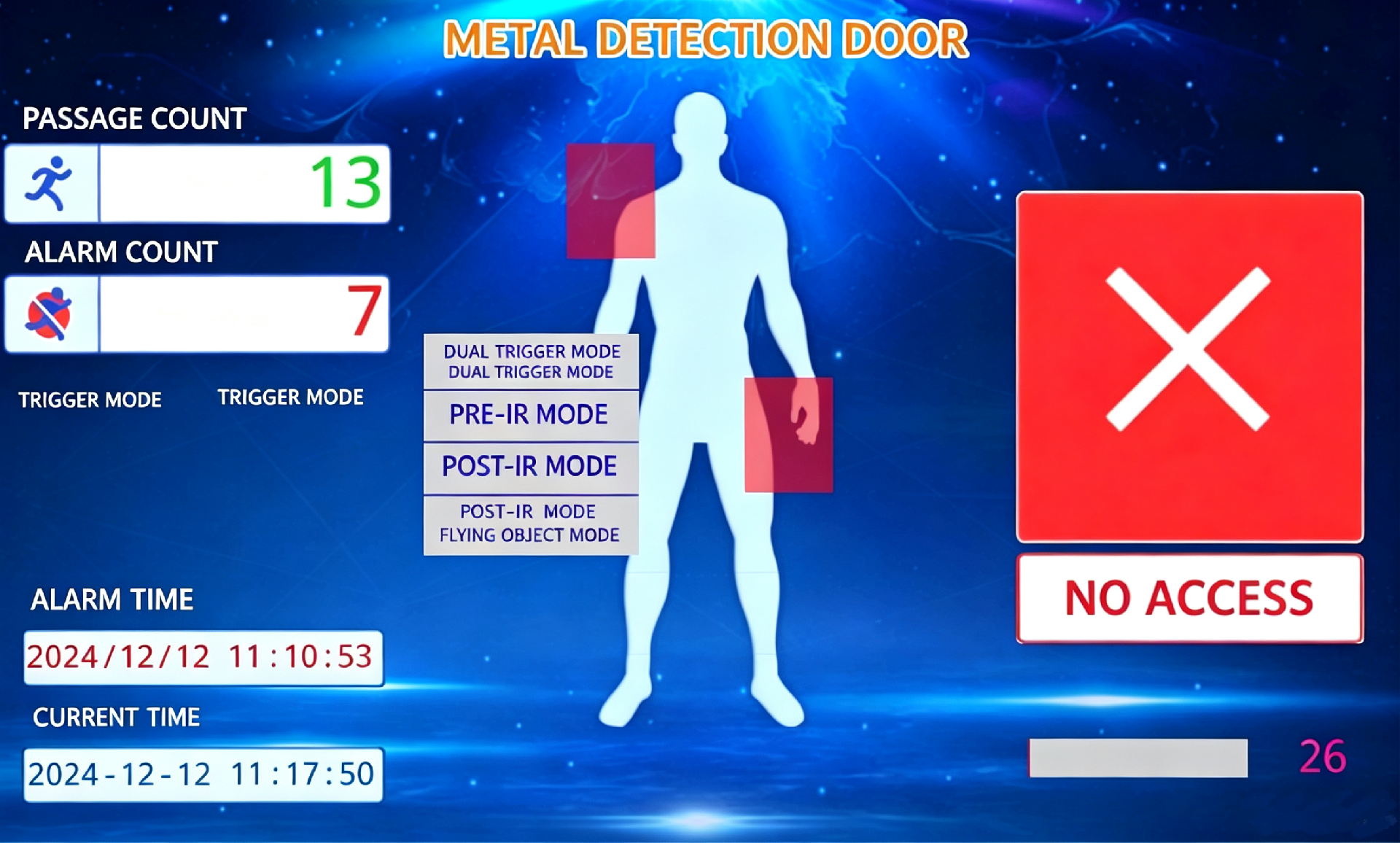

l Display Function:Equipped with a minimum 5.7-inch color LCD screen; menus are displayed in visual color icon mode.

l Password Operation:Password protection restricts operation to authorized personnel only for enhanced security.

l Integrated Design:The main unit integrates mainboard and display controller. Signal acquisition boards are mounted on both sides of door panels for simplicity and convenient aftersales service.

l Multi-zone Detection Technology:33 detection zones. Sensitivity of each zone is freely adjustable (level 0~255). High-brightness LED alarm indicators accurately locate concealed contraband.

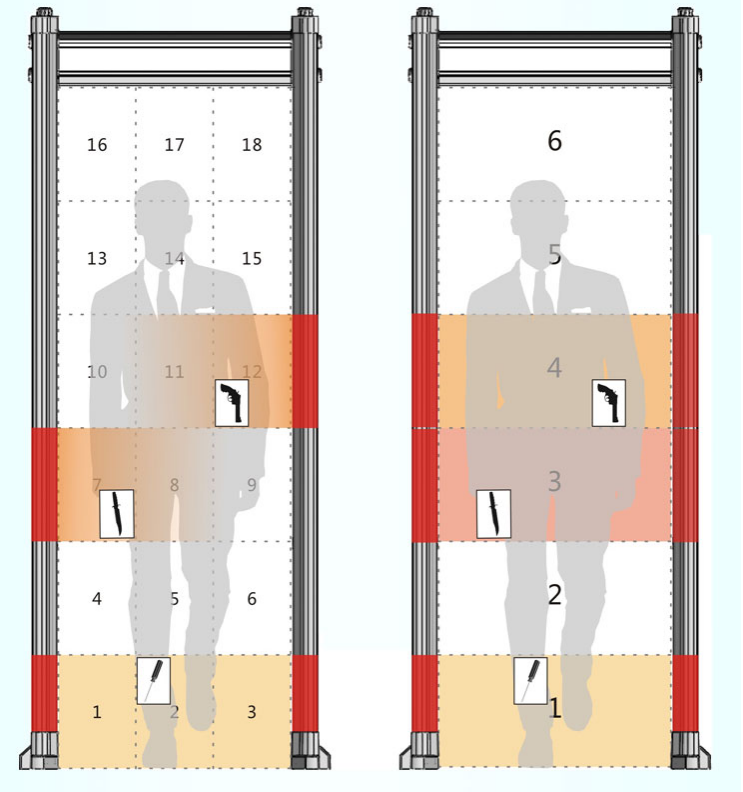

l Multi-zone Detection Function:The detector supports switching among 6-zone, 12-zone, 18-zone and 33-zone alarm modes. LED alarm indicators show the triggered zone; sensitivity of each zone can be adjusted arbitrarily.

l Flying-object Detection Function:Prevents articles from being passed through the gate without personnel passing through.

l Power-on Self-test Function:Upon startup, if faults are detected, the screen graphically indicates the fault location.

l Power-on Adaptive Diagnosis:The system runs adaptive self-diagnosis at startup and displays faults.

l Adaptive Debugging System:The system adaptively calibrates detection standards when entering debugging mode.

l Ambient Metal Interference Indication Function:The device detects changes in surrounding metal content. The waveform amplitude on screen indicates the magnetic-field interference level caused by ambient metal objects.

l Anti-Electromagnetic Interference:Adopts DSP digital signal processing technology to automatically scan mechanical and electromagnetic interference on-site and adapt to working conditions. It delivers high immunity against electromagnetic and mechanical disturbance. No periodic calibration is required, greatly enhancing anti-interference capability.

l Circuit Characteristics:Composite-circuit design effectively reduces false and missing alarms. Intelligent five-digit counting function separately records the number of passing personnel and alarm events.

l Turnstile Linkage Function:Linkage between walk-through detector and turnstile to manage alarming personnel (Optional).

l Casters:Mobile casters for convenient relocation (Optional).

l Battery:Backup battery with 6-hour working duration (Customizable).

Model

WD-300M

Detection Zones

33 independent detection zones

Overall Sensitivity

Level 0~255

Pass-through Speed

0.4M/S-1M/S

Power Consumption

＜25W

Frequency Bands

1~50 channels

Compliant Standard

GB15210-2018

Total Weight

Approx. 70kg

Operating Ambient Temperature

-20℃ ~ +45℃

Operating Voltage

AC110V/240V — 50/60Hz

Inner Passage Dimension

2000(H) × 700(W) mm

Overall External Dimension

2200(H) × 840(W) × 500(D) mm
