l Human-body Safety：Harmless to pacemaker wearers, pregnant women and magnetic media.

l Display Function：Digital tubes display the number of passing personnel and alarm counts.

l Password Operation：Password protection restricts operation to authorized personnel only for enhanced security.

l Integrated Design：The main controller integrates mainboard and display control. Signal acquisition boards are installed on both sides of door panels for simple operation and convenient after-sales service.

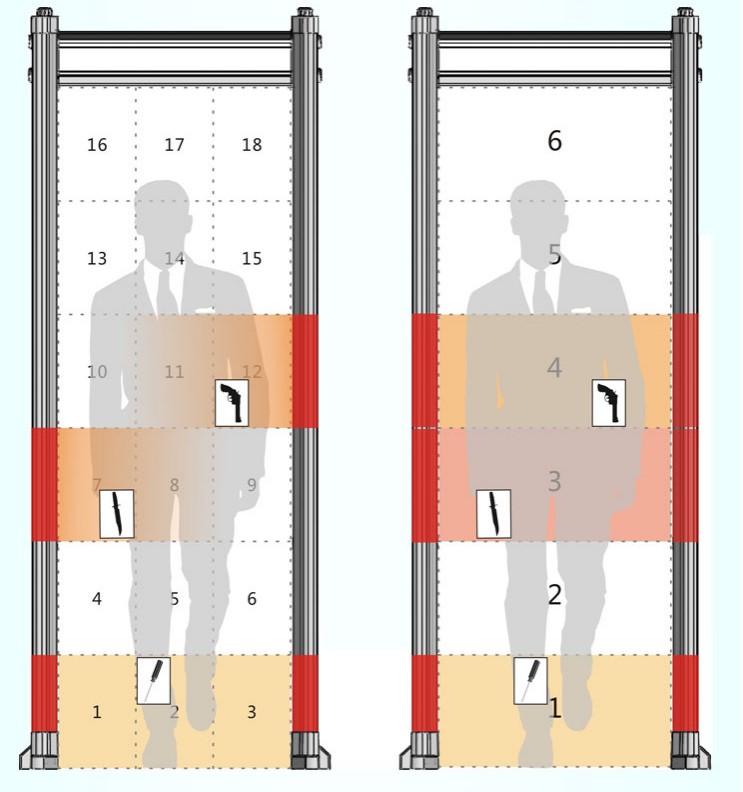

l Multi-zone Detection Technology：18 detection zones with freely adjustable sensitivity (level 0~199). High-brightness LED alarm indicators accurately locate concealed contraband.

l Multi-zone Detection Function：The detector supports switching among 6-zone, 12-zone and 18-zone alarm modes. LED alarm indicators show the triggered zone; sensitivity of each zone can be adjusted arbitrarily.

l Power-on Self-test Function：Upon startup, if equipment faults are detected, the screen graphically indicates the fault location.

l Power-on Adaptive Diagnosis：The system performs adaptive self-diagnosis for power-on status and displays faults.

l Adaptive Debugging System：The system adaptively calibrates detection standards when entering debugging mode.

l Anti-Electromagnetic Interference：Adopts DSP digital signal processing technology to automatically scan mechanical and electromagnetic interference on-site and adapt to working environment. It provides high immunity to electromagnetic and mechanical disturbance. No periodic calibration is required, which greatly improves anti-interference capacity.

l Circuit Characteristics：Composite-circuit design effectively reduces false and missing alarms. Intelligent five-digit counting function separately records the number of passing personnel and alarm events.

l Turnstile Linkage Function：Linkage between walk-through detector and turnstile to manage alarming personnel (Optional).

l Casters：Mobile casters for position relocation (Optional).

l Battery：Backup battery with 6-hour working duration (Customizable).

l Power-failure Protection：(Optional built-in battery). It automatically charges the battery under mains power supply and switches to backup battery power supply in case of mains power cut-off.

Model

WD-300L

Detection Zones

18 independent detection zones

Overall Sensitivity

Level 0~200

Pass-through Speed

0.4M/S-1.2M/S

Power Consumption

＜30W

Working Frequency Bands

1~12 bands

Compliant Standard

GB15210-2018

Overall Weight

Approx. 70kg

Operating Ambient Temperature

-20℃ ~ +45℃

Operating Voltage

AC110V/240V — 50/60Hz

Inner Aperture Dimension

2000(H) × 700(W) mm

Overall External Dimension

2200(H) × 840(W) × 500(D) mm
