l The system is capable of displaying environmental monitoring data; high performance, high sensitivity and high stability.

l It supports system networking, enabling one single PC to manage multiple devices.

l Users may pre‑set the weight, volume, size and position of metal objects so as to eliminate false alarms triggered by keys, jewelry, belt buckles and other items.

l Compliant with EMC electromagnetic radiation standards and adopting low‑magnetic‑field technology, it is harmless to pacemaker wearers, pregnant women, floppy disks, films, video tapes and so forth.

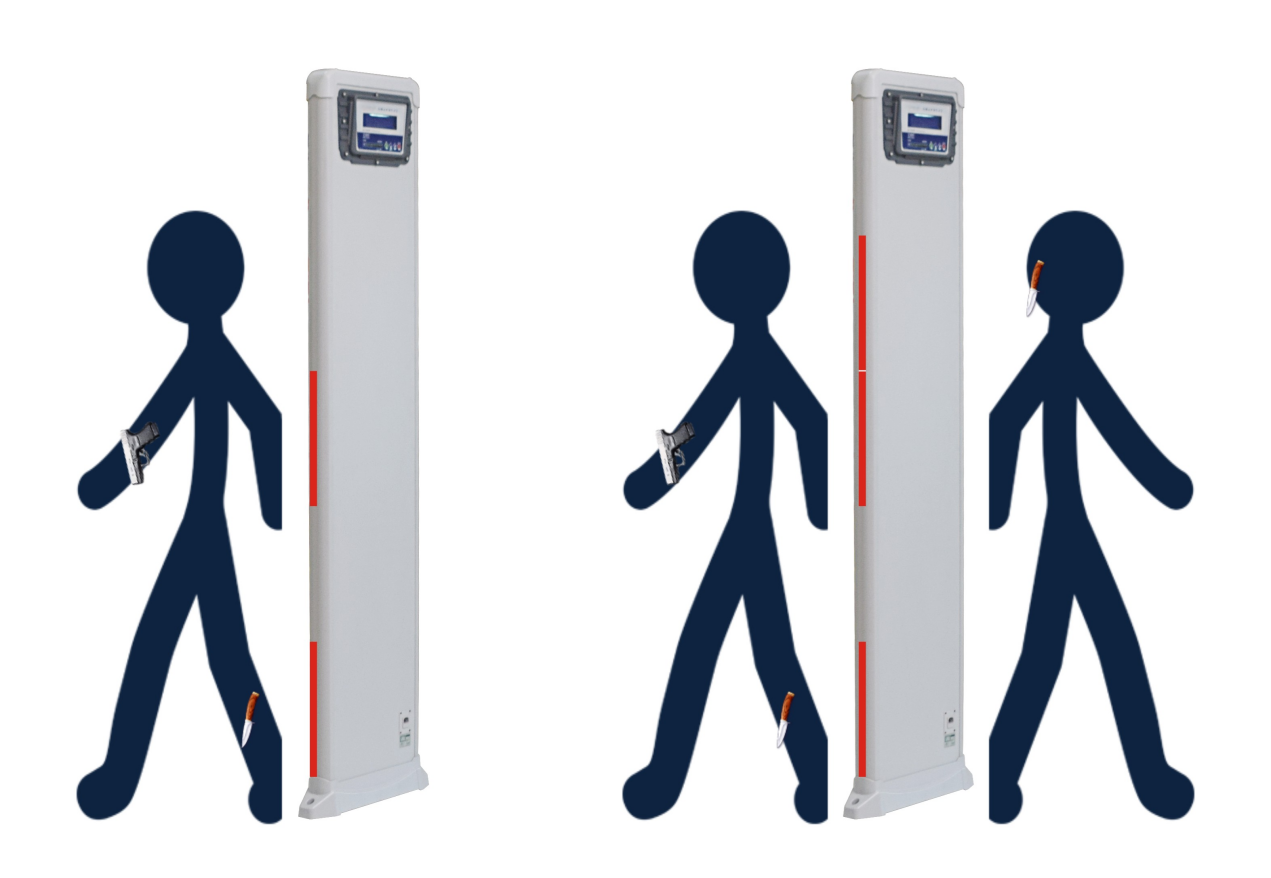

Detection Mode 1                                                                   Detection Mode 2

Model

WD-300V

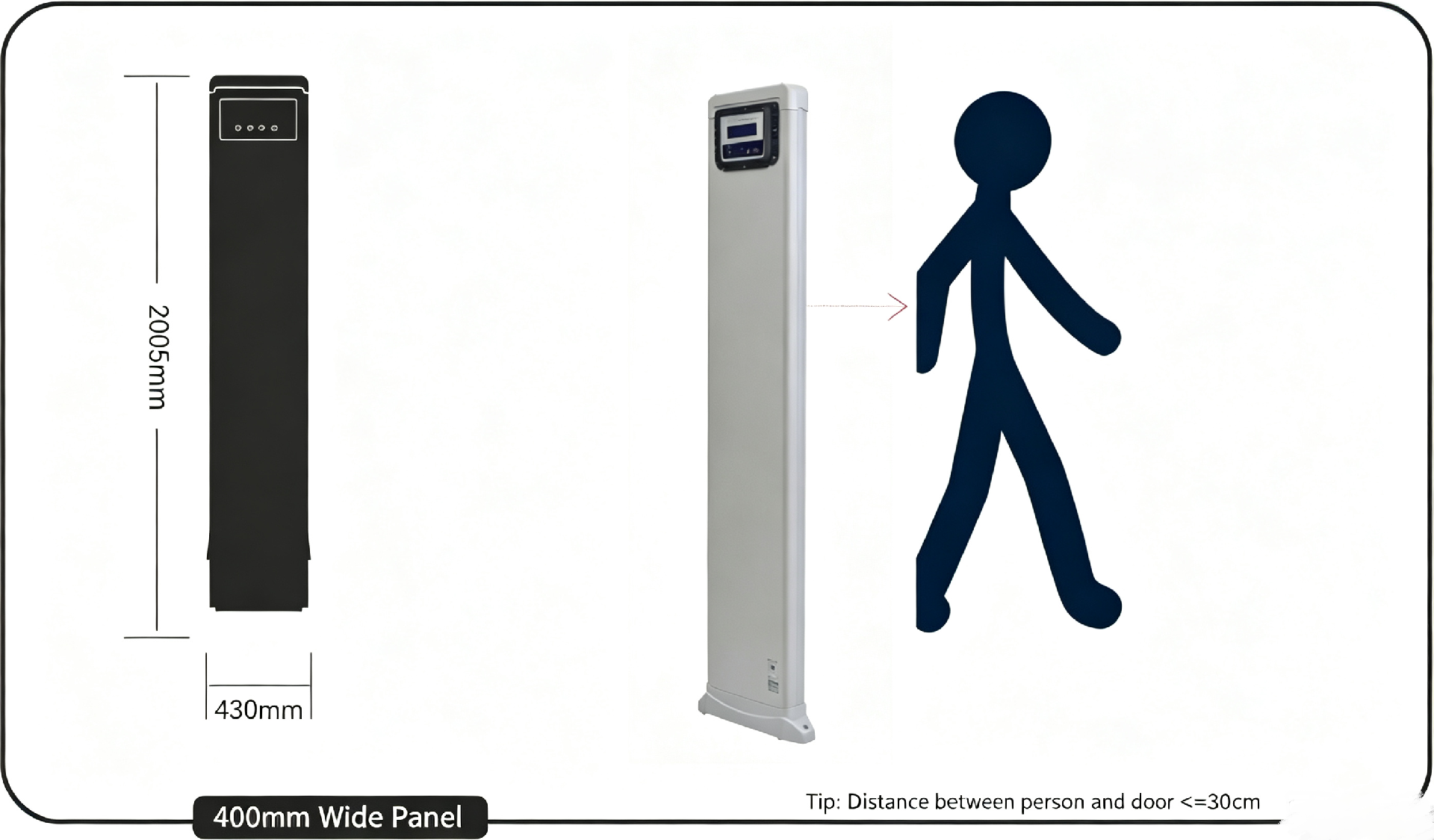

Overall Dimension (Upright Type)

2005×430mm

Passage Dimension (Upright Type)

2005×430mm

Packing Dimension

2100×500×200mm

Net Weight

20KG

Gross Weight

22KG

Working Voltage

AC90V～240V, 50/60Hz

Power Consumption

12W

Working Frequency Range

1~50 frequency bands

Working Ambient Temperature

-20℃～65℃

Installation Environment

Minimum non-metal area: 100cm(W)×200cm(L), horizontal placement

Zone Detection Sensitivity Range

Maximum sensitivity ≥20g metal

Electrical Safety in accordance with EN60950

Complied

Radiation Performance in accordance with EN50081-1

Complied

Anti-interference Performance in accordance with EN50082-1

Complied

Complies with GB15210-2003 Standard for Walk-through Metal Detector

●

ISO9001:2008 Quality Management System Certified

●

OHSAS 18001 Occupational Health and Safety Management Certified

●

ISO14001 Environmental Management System Certified

●

EU CE Certification

●

Rejection of Daily-carried Metal Objects

●

5.7-inch LCD Display Screen

●

Integrated 4-key Panel Operation Mode

●

One-key Remote Control Operation Mode

○

Multi-unit Networking Interface

○

Port for External Alarm Controller

○

Secondary Development / Upgrade Port

○

Pass-through People Counting Function

●

Alarm Times Statistics Function

●

In-out Personnel Record Query Function

○

Password Protection Function

●

Multi-zone Simultaneous Detection and Alarm Function

●

Intelligent Identification Function for Large-size Articles

●

High-bright SMD Partition Alarm LED Indicators

●

High-bright SMD Double-row Zone Indicators

●

50 Selectable Working Frequency Bands

●

Alarm Mute Mode Setting

●

Adjustable Alarm Volume Mode

●

Multiple Optional Alarm Tones Mode

●

Infrared Trigger Start-stop Function

●

Front Single-side Zone Alarm Indicators

●

Front-rear Double-side Zone Alarm Indicators

○

Adjustable Sensitivity for Each Detection Zone

●

Each Zone Sensitivity Adjustable from 0~255 Levels

●

Security Level Selectable from Level 1~100

●

Independent 5-probe Interactive 5-zone Detection

●

Independent 12-probe Interactive 12~18-zone Detection

/

2-hour Battery Backup (Optional)

○

8-hour Battery Backup (Optional)

○

Multiple Quick-setup Scene Presets

●

Factory Settings Restore Function

●
